Does Harry Browne's permanent portfolio withstand the test of time?

# Standard Library
import os
import sys
import warnings

from pathlib import Path

# Data Handling
import pandas as pd

# Data Visualization
import matplotlib.dates as mdates
import matplotlib.pyplot as plt
import matplotlib.ticker as mtick
from matplotlib.ticker import MultipleLocator

# Display
from IPython.display import display

# Suppress warnings
warnings.filterwarnings("ignore")

# Add the source subdirectory to the system path to allow import config from settings.py
current_directory = Path(os.getcwd())
website_base_directory = current_directory.parent.parent.parent
src_directory = website_base_directory / "src"
sys.path.append(str(src_directory)) if str(src_directory) not in sys.path else None

# Import settings.py
from settings import config

# Add configured directories from config to path
SOURCE_DIR = config("SOURCE_DIR")
sys.path.append(str(Path(SOURCE_DIR))) if str(Path(SOURCE_DIR)) not in sys.path else None

# Add other configured directories
BASE_DIR = config("BASE_DIR")
CONTENT_DIR = config("CONTENT_DIR")
POSTS_DIR = config("POSTS_DIR")
PAGES_DIR = config("PAGES_DIR")
PUBLIC_DIR = config("PUBLIC_DIR")
SOURCE_DIR = config("SOURCE_DIR")
DATA_DIR = config("DATA_DIR")
DATA_MANUAL_DIR = config("DATA_MANUAL_DIR")

from bb_clean_data import bb_clean_data
from df_info import df_info
from load_data import load_data
from pandas_set_decimal_places import pandas_set_decimal_places
from plot_bar import plot_bar
from plot_time_series import plot_time_series
from strategy_harry_brown_perm_port import strategy_harry_brown_perm_port
from summary_stats import summary_stats

# Set decimal places
pandas_set_decimal_places(3)

START_DATE = '1990-01-01'
END_DATE = '2025-12-31'

# Bonds dataframe
bb_clean_data(
    base_directory=DATA_DIR,
    fund_ticker_name="SPBDU10T_S&P US Treasury Bond 7-10 Year Total Return Index",
    source="Bloomberg",
    asset_class="Indices",
    excel_export=True,
    pickle_export=True,
    output_confirmation=True,
)

bonds_data = load_data(
    base_directory=DATA_DIR,
    ticker="SPBDU10T_S&P US Treasury Bond 7-10 Year Total Return Index_Clean",
    source="Bloomberg",
    asset_class="Indices",
    timeframe="Daily",
    file_format="excel",
)

bonds_data['Date'] = pd.to_datetime(bonds_data['Date'])
bonds_data.set_index('Date', inplace = True)
bonds_data = bonds_data[(bonds_data.index >= START_DATE) & (bonds_data.index <= END_DATE)]
bonds_data.rename(columns={'Close':'Bonds_Close'}, inplace=True)
bonds_data['Bonds_Daily_Return'] = bonds_data['Bonds_Close'].pct_change()
bonds_data['Bonds_Total_Return'] = (1 + bonds_data['Bonds_Daily_Return']).cumprod()
df_info(bonds_data)

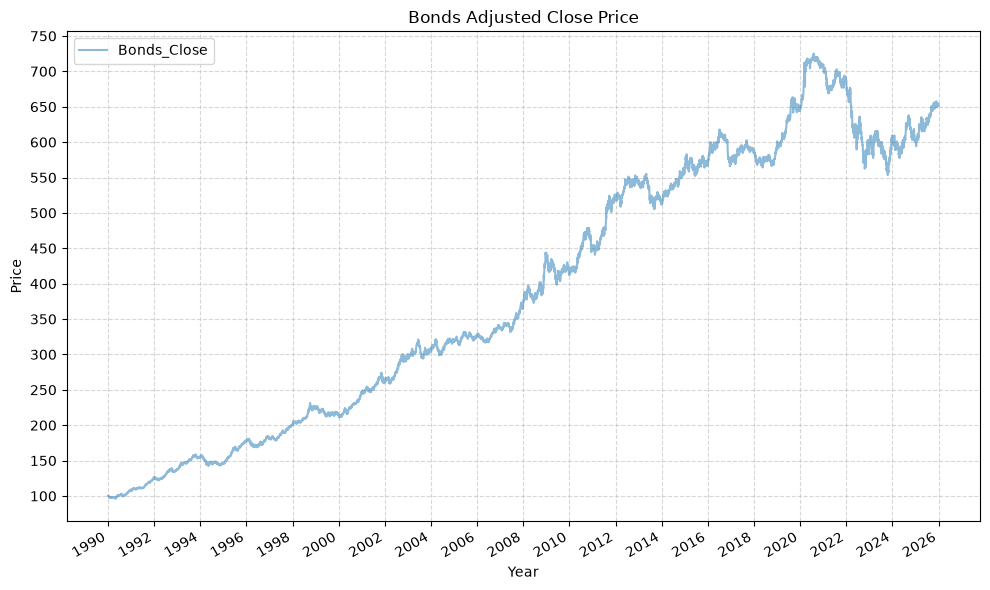

plot_time_series(
    df=bonds_data[["Bonds_Close"]],
    plot_start_date=START_DATE,
    plot_end_date=END_DATE,
    plot_columns="All",
    title="Bonds Adjusted Close Price",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Price",
    y_format="Decimal",
    y_format_decimal_places="Auto",
    y_tick_spacing="Auto",
    y_tick_rotation=0,
    grid=True,
    legend=True,
    legend_location="upper left",
    export_plot=False,
)

# Stocks dataframe
bb_clean_data(
    base_directory=DATA_DIR,
    fund_ticker_name="SPXT_S&P 500 Total Return Index",
    source="Bloomberg",
    asset_class="Indices",
    excel_export=True,
    pickle_export=True,
    output_confirmation=True,
)

stocks_data = load_data(
    base_directory=DATA_DIR,
    ticker="SPXT_S&P 500 Total Return Index_Clean",
    source="Bloomberg",
    asset_class="Indices",
    timeframe="Daily",
    file_format="excel",
)

stocks_data['Date'] = pd.to_datetime(stocks_data['Date'])
stocks_data.set_index('Date', inplace = True)
stocks_data = stocks_data[(stocks_data.index >= START_DATE) & (stocks_data.index <= END_DATE)]
stocks_data.rename(columns={'Close':'Stocks_Close'}, inplace=True)
stocks_data['Stocks_Daily_Return'] = stocks_data['Stocks_Close'].pct_change()
stocks_data['Stocks_Total_Return'] = (1 + stocks_data['Stocks_Daily_Return']).cumprod()
df_info(stocks_data)

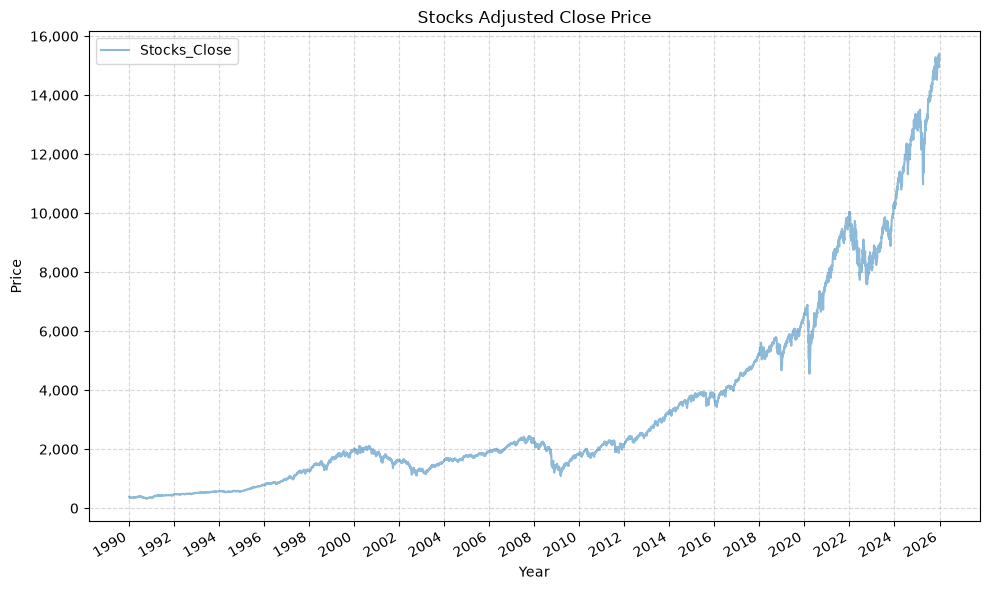

plot_time_series(
    df=stocks_data[["Stocks_Close"]],
    plot_start_date=START_DATE,
    plot_end_date=END_DATE,
    plot_columns="All",
    title="Stocks Adjusted Close Price",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Price",
    y_format="Decimal",
    y_format_decimal_places="Auto",
    y_tick_spacing="Auto",
    y_tick_rotation=0,
    grid=True,
    legend=True,
    legend_location="upper left",
    export_plot=False,
)

# Gold dataframe
bb_clean_data(
    base_directory=DATA_DIR,
    fund_ticker_name="XAU_Gold USD Spot",
    source="Bloomberg",
    asset_class="Commodities",
    excel_export=True,
    pickle_export=True,
    output_confirmation=True,
)

gold_data = load_data(
    base_directory=DATA_DIR,
    ticker="XAU_Gold USD Spot_Clean",
    source="Bloomberg",
    asset_class="Commodities",
    timeframe="Daily",
    file_format="excel",
)

gold_data['Date'] = pd.to_datetime(gold_data['Date'])
gold_data.set_index('Date', inplace = True)
gold_data = gold_data[(gold_data.index >= START_DATE) & (gold_data.index <= END_DATE)]
gold_data.rename(columns={'Close':'Gold_Close'}, inplace=True)
gold_data['Gold_Daily_Return'] = gold_data['Gold_Close'].pct_change()
gold_data['Gold_Total_Return'] = (1 + gold_data['Gold_Daily_Return']).cumprod()
df_info(gold_data)

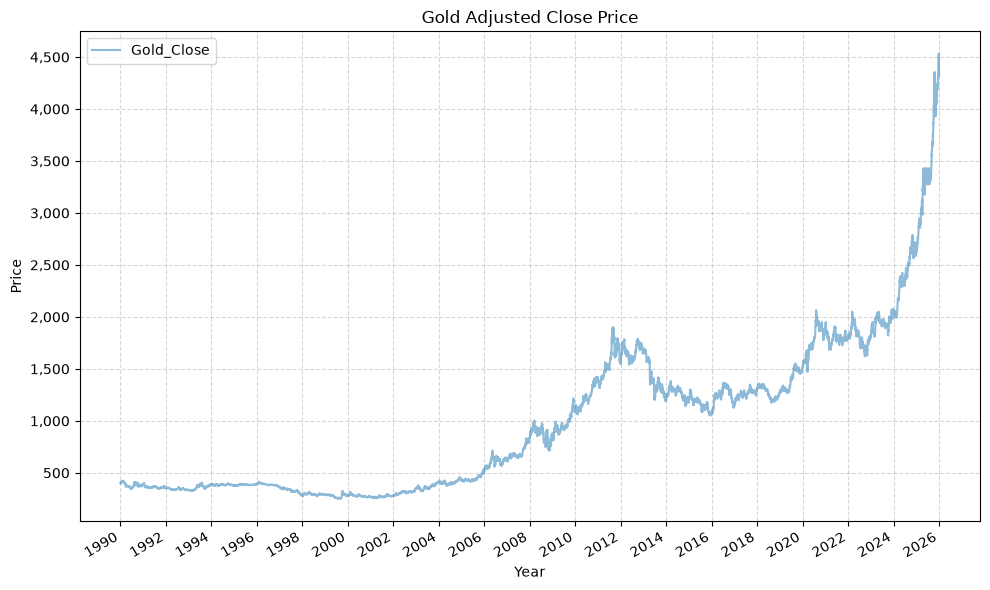

plot_time_series(
    df=gold_data[["Gold_Close"]],
    plot_start_date=START_DATE,
    plot_end_date=END_DATE,
    plot_columns="All",
    title="Gold Adjusted Close Price",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Price",
    y_format="Decimal",
    y_format_decimal_places="Auto",
    y_tick_spacing="Auto",
    y_tick_rotation=0,
    grid=True,
    legend=True,
    legend_location="upper left",
    export_plot=False,
)

# Pull the 3 month Treasury bill rate directly from the FRED CSV endpoint
cash_rate = pd.read_csv(
    "https://fred.stlouisfed.org/graph/fredgraph.csv?id=DGS3MO",
    parse_dates=["observation_date"],
    index_col="observation_date",
)["DGS3MO"]

# Normalize to nanosecond resolution so the index lines up with the price data
cash_rate.index = cash_rate.index.astype("datetime64[ns]")

# Convert from percent to decimal
cash_rate = cash_rate / 100

print(f"Cash rate range: {cash_rate.index.min().date()} to {cash_rate.index.max().date()}")

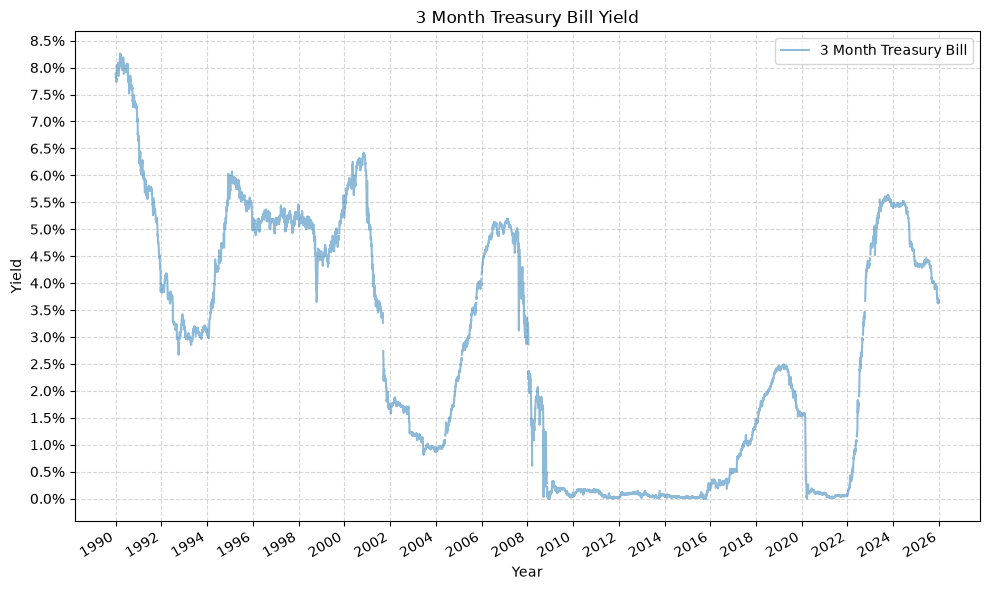

plot_time_series(
    df=cash_rate.to_frame("3 Month Treasury Bill"),
    plot_start_date=START_DATE,
    plot_end_date=END_DATE,
    plot_columns="All",
    title="3 Month Treasury Bill Yield",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Yield",
    y_format="Percentage",
    y_format_decimal_places=1,
    y_tick_spacing="Auto",
    y_tick_rotation=0,
    grid=True,
    legend=True,
    legend_location="upper right",
    export_plot=False,
)

# Merge the stock data and bond data into a single DataFrame using their indices (dates)
perm_port = pd.merge(stocks_data['Stocks_Close'], bonds_data['Bonds_Close'], left_index=True, right_index=True)

# Add gold data to the portfolio DataFrame by merging it with the existing data on indices (dates)
perm_port = pd.merge(perm_port, gold_data['Gold_Close'], left_index=True, right_index=True)

# Build a total return index for cash, so that it can be treated like any other asset.
# The rate is published daily but only accrues over the calendar days that actually
# elapse between rows, and we accrue on the previous day's published rate so that no
# day earns a return from a rate that was not yet known.
daily_rate = cash_rate.reindex(perm_port.index).ffill()
days_elapsed = perm_port.index.to_series().diff().dt.days.fillna(0)
perm_port['Cash_Close'] = (1 + daily_rate.shift(1).fillna(0) * days_elapsed / 365).cumprod()

# Remove any rows with missing values (NaN) to ensure clean data for further analysis
perm_port.dropna(inplace=True)

# Display the finalized portfolio DataFrame
display(perm_port)

# Check for any missing values in each column
perm_port.isnull().any()

df_info(perm_port)

# List of funds to be used
fund_list = ['Stocks', 'Bonds', 'Gold', 'Cash']

# Starting cash contribution
starting_cash = 10000

# Monthly cash contribution
cash_contrib = 0

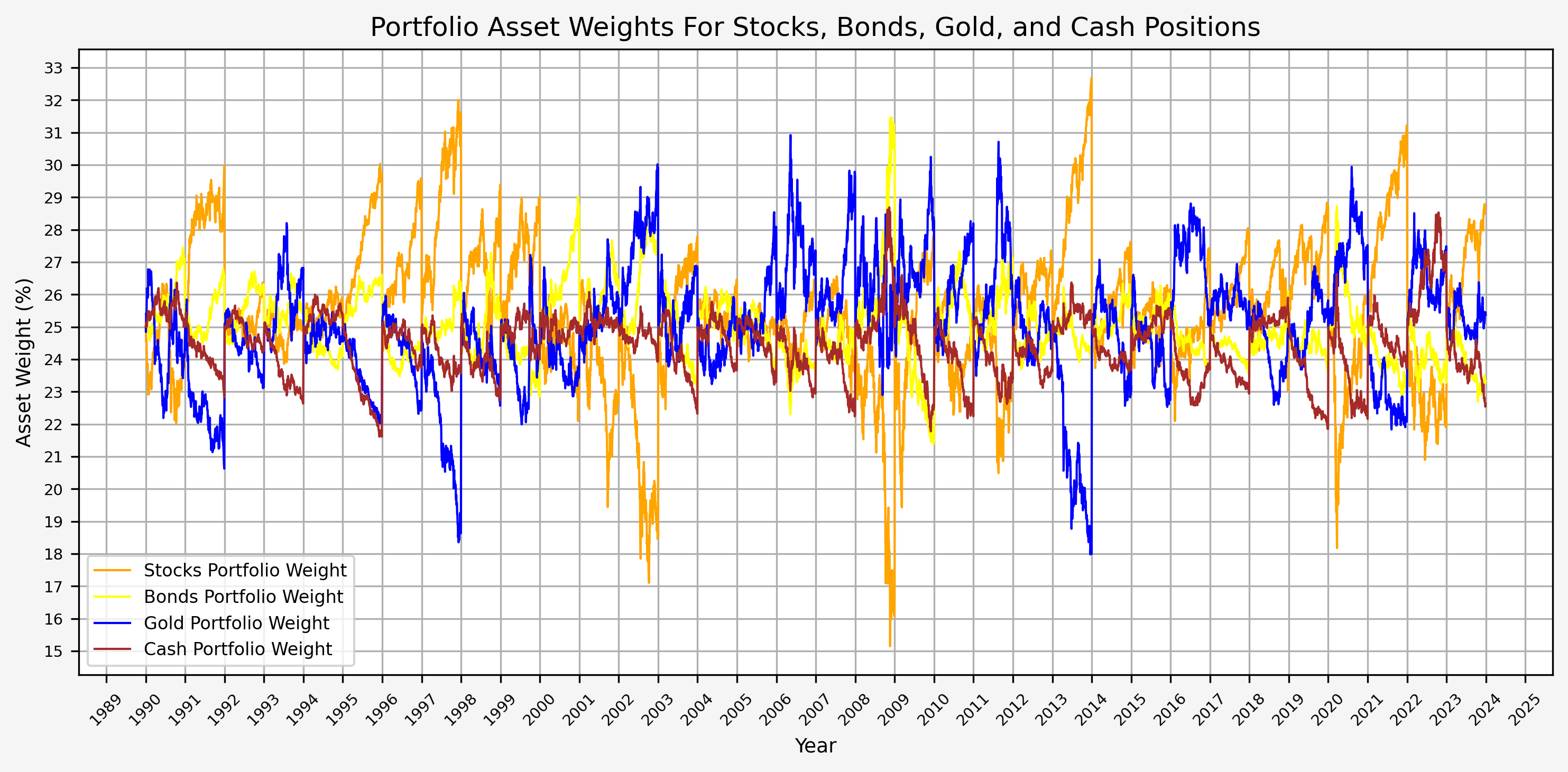

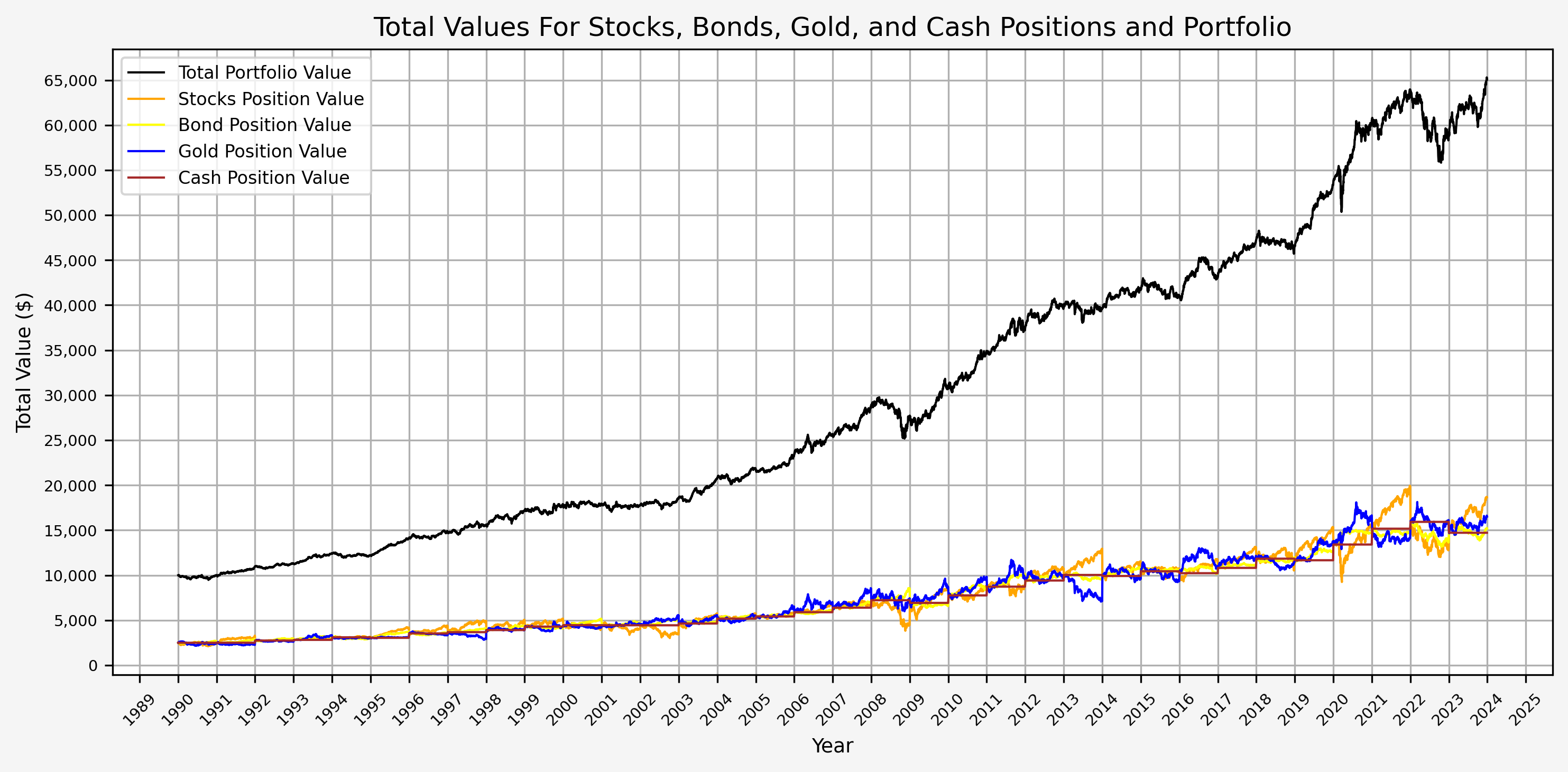

strat = strategy_harry_brown_perm_port(
    fund_list=fund_list,
    starting_cash=starting_cash,
    cash_contrib=cash_contrib,
    close_prices_df=perm_port,
    rebal_month=1,
    rebal_day=1,
    rebal_per_high=1.40,
    rebal_per_low=0.60,
    excel_export=True,
    pickle_export=True,
    output_confirmation=True,
)

strat = strat.set_index('Date')

df_info(strat)

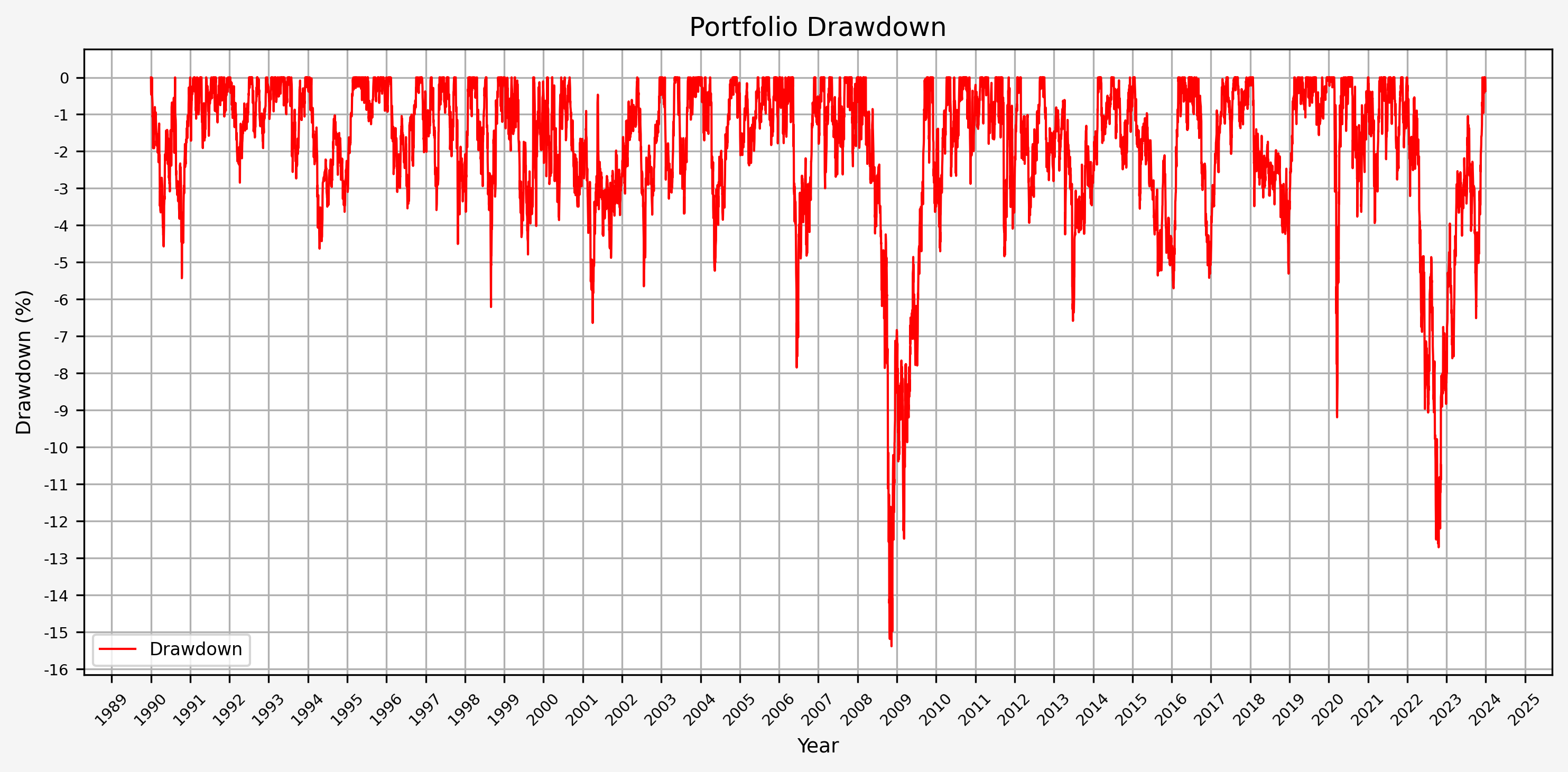

sum_stats = summary_stats(
    fund_list=fund_list,
    df=strat[['Return']],
    period="Daily",
    use_calendar_days=False,
    excel_export=True,
    pickle_export=True,
    output_confirmation=True,
)

strat_pre_1999 = strat[strat.index < '2000-01-01']
sum_stats_pre_1999 = summary_stats(
    fund_list=fund_list,
    df=strat_pre_1999[['Return']],
    period="Daily",
    use_calendar_days=False,
    excel_export=False,
    pickle_export=False,
    output_confirmation=True,
)

strat_post_1999 = strat[strat.index >= '2000-01-01']
sum_stats_post_1999 = summary_stats(
    fund_list=fund_list,
    df=strat_post_1999[['Return']],
    period="Daily",
    use_calendar_days=False,
    excel_export=False,
    pickle_export=False,
    output_confirmation=True,
)

strat_post_2009 = strat[strat.index >= '2010-01-01']
sum_stats_post_2009 = summary_stats(
    fund_list=fund_list,
    df=strat_post_2009[['Return']],
    period="Daily",
    use_calendar_days=False,
    excel_export=False,
    pickle_export=False,
    output_confirmation=True,
)

all_sum_stats = pd.concat([sum_stats])
all_sum_stats = all_sum_stats.rename(index={'Return': f'{START_DATE[:4]} - {END_DATE[:4]}'})
all_sum_stats = pd.concat([all_sum_stats, sum_stats_pre_1999])
all_sum_stats = all_sum_stats.rename(index={'Return': 'Pre 1999'})
all_sum_stats = pd.concat([all_sum_stats, sum_stats_post_1999])
all_sum_stats = all_sum_stats.rename(index={'Return': 'Post 1999'})
all_sum_stats = pd.concat([all_sum_stats, sum_stats_post_2009])
all_sum_stats = all_sum_stats.rename(index={'Return': 'Post 2009'})
display(all_sum_stats)

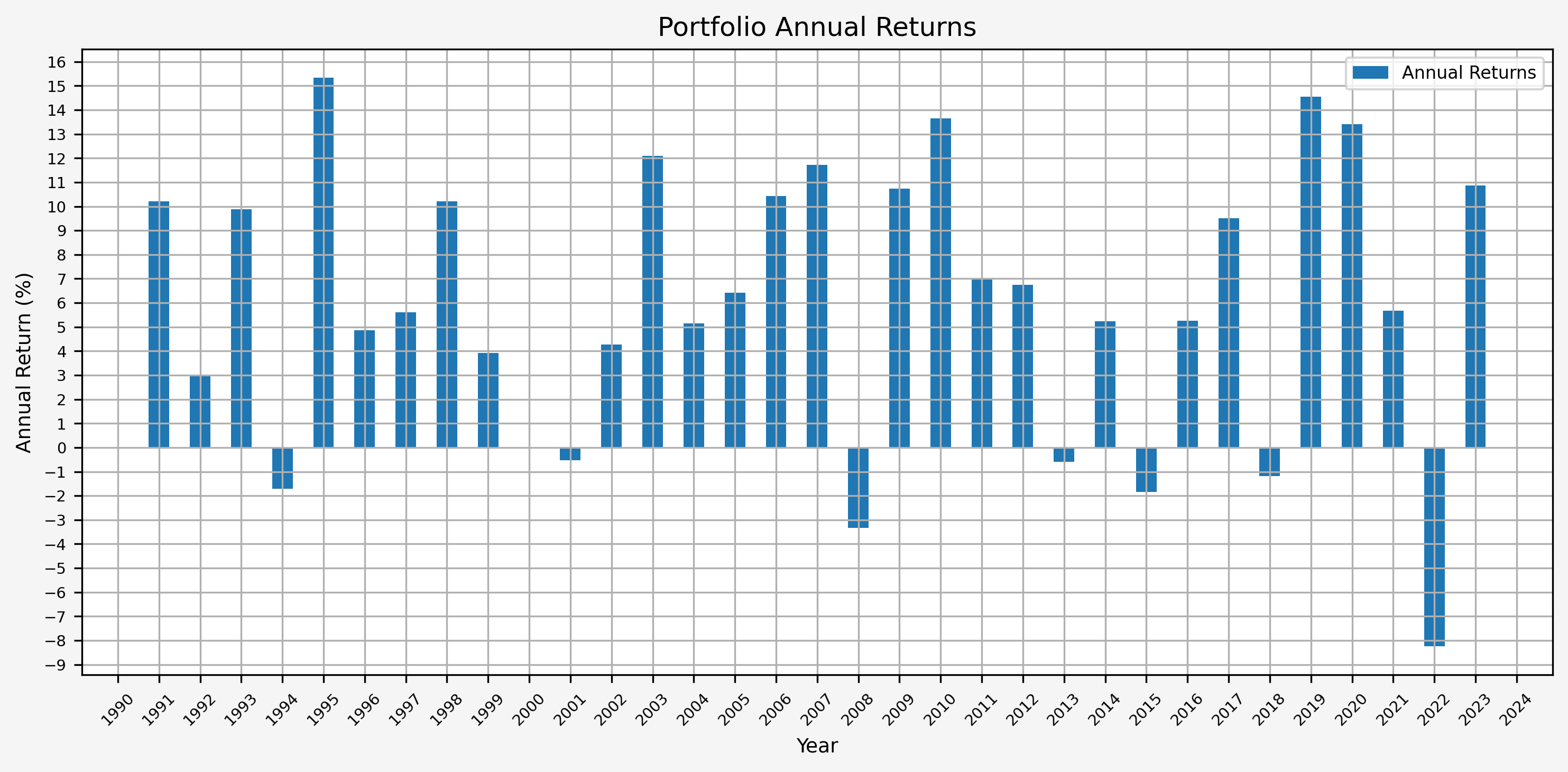

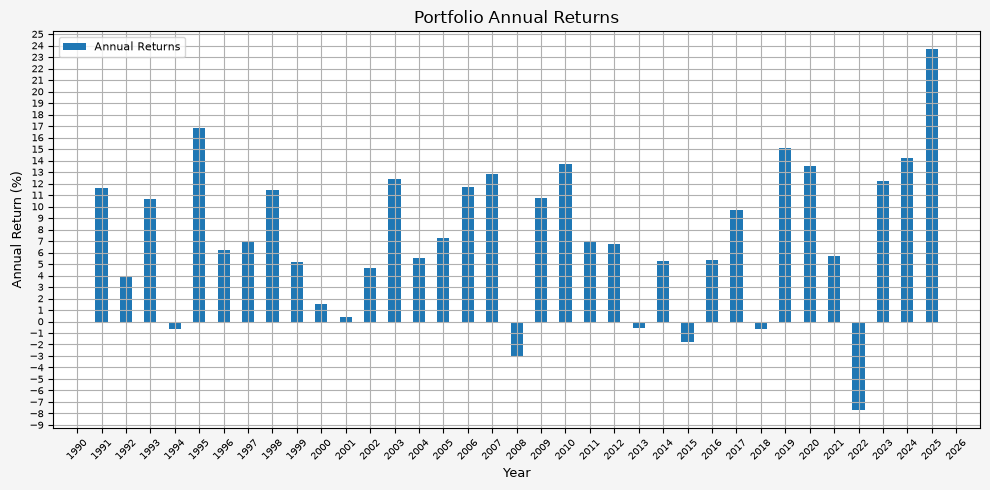

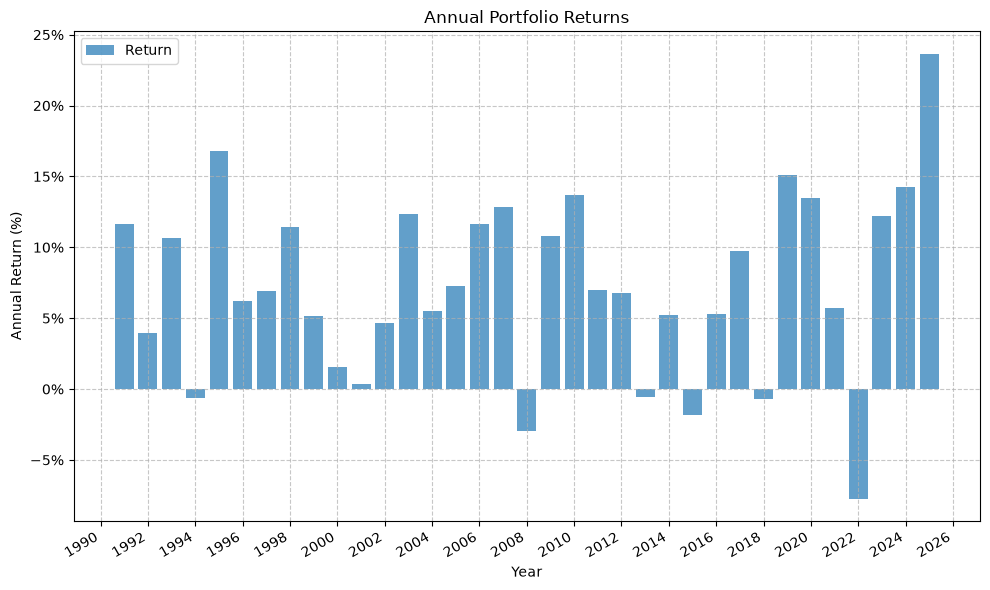

# Create dataframe for the annual returns
strat_annual_returns = strat['Cumulative_Return'].resample('YE').last().pct_change().dropna()
strat_annual_returns_df = strat_annual_returns.to_frame()
strat_annual_returns_df['Year'] = strat_annual_returns_df.index.year  # Add a 'Year' column with just the year
strat_annual_returns_df.reset_index(drop=True, inplace=True)  # Reset the index to remove the datetime index

# Now the DataFrame will have 'Year' and 'Cumulative_Return' columns
strat_annual_returns_df = strat_annual_returns_df[['Year', 'Cumulative_Return']]  # Keep only 'Year' and 'Cumulative_Return' columns
strat_annual_returns_df.rename(columns = {'Cumulative_Return':'Return'}, inplace=True)
strat_annual_returns_df.set_index('Year', inplace=True)
display(strat_annual_returns_df)

# Export the annual returns DataFrame to Excel and pickle files
plan_name = '_'.join(fund_list)
strat_annual_returns_df.to_excel(f"{plan_name}_Annual_Returns.xlsx", sheet_name="data")
strat_annual_returns_df.to_pickle(f"{plan_name}_Annual_Returns.pkl")

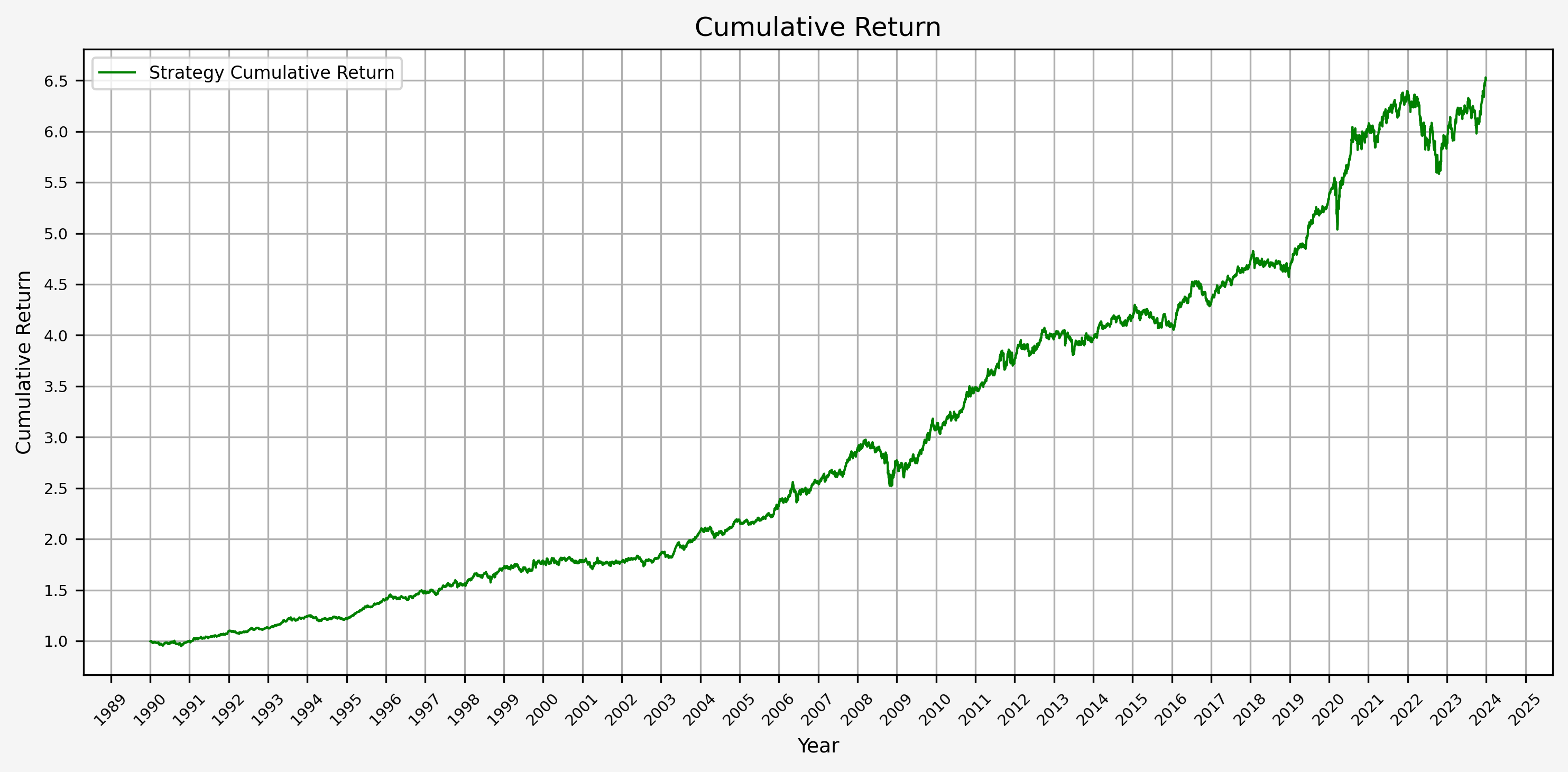

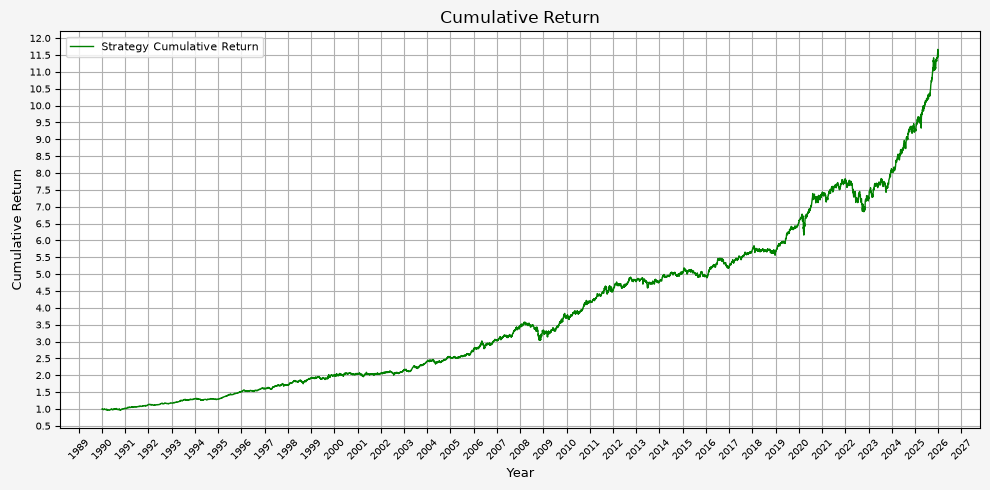

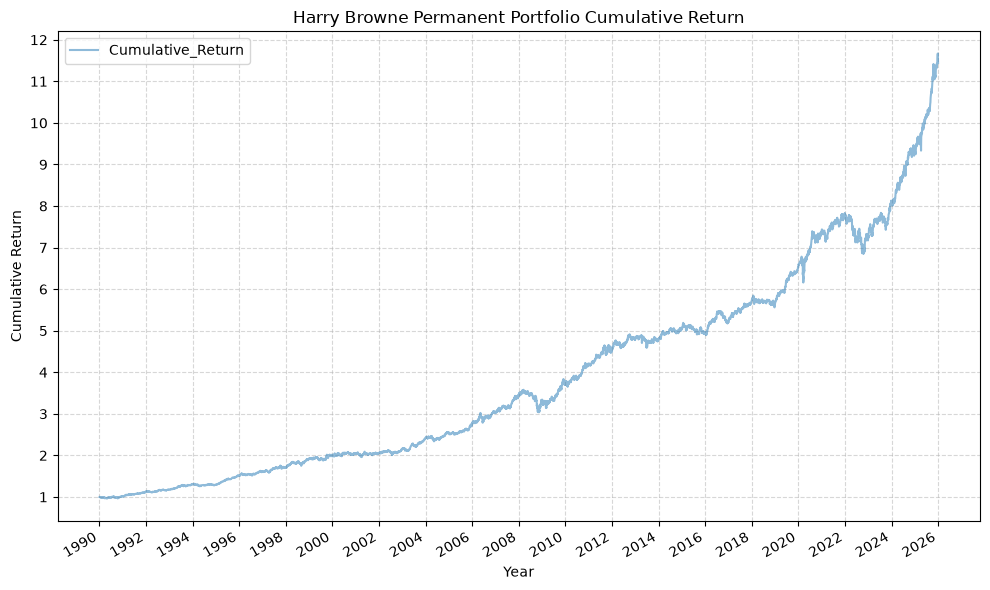

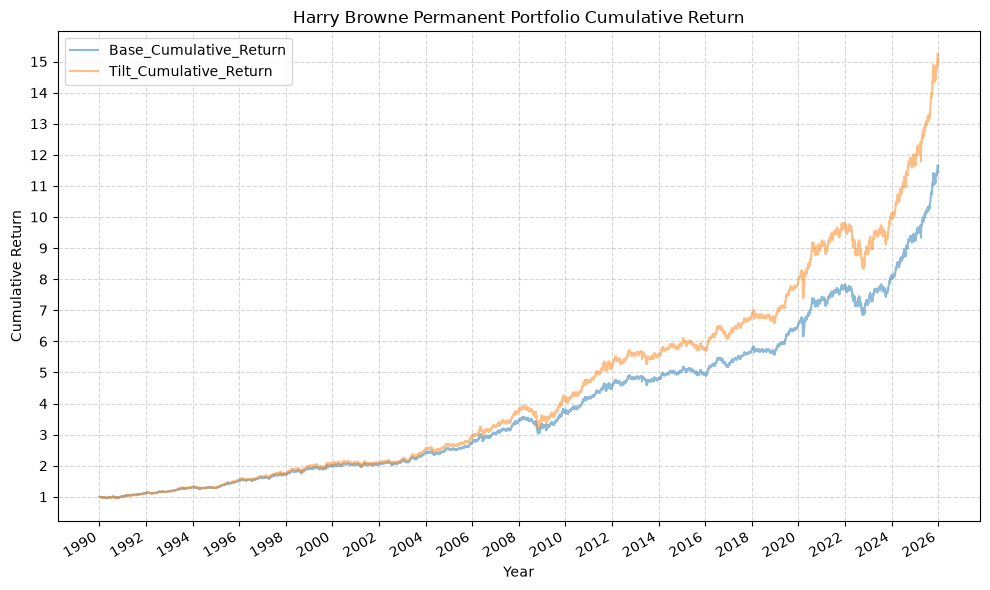

def plot_cumulative_return(strat_df):
    # Generate plot
    plt.figure(figsize=(10, 5), facecolor = '#F5F5F5')

    # Plotting data
    plt.plot(strat_df.index, strat_df['Cumulative_Return'], label = 'Strategy Cumulative Return', linestyle='-', color='green', linewidth=1)

    # Set X axis
    # x_tick_spacing = 5  # Specify the interval for x-axis ticks
    # plt.gca().xaxis.set_major_locator(MultipleLocator(x_tick_spacing))
    plt.gca().xaxis.set_major_locator(mdates.YearLocator())
    plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%Y'))
    plt.xlabel('Year', fontsize = 9)
    plt.xticks(rotation = 45, fontsize = 7)
    # plt.xlim(, )

    # Set Y axis
    y_tick_spacing = 0.5  # Specify the interval for y-axis ticks
    plt.gca().yaxis.set_major_locator(MultipleLocator(y_tick_spacing))
    plt.ylabel('Cumulative Return', fontsize = 9)
    plt.yticks(fontsize = 7)
    # plt.ylim(0, 7.5)

    # Set title, etc.
    plt.title('Cumulative Return', fontsize = 12)

    # Set the grid & legend
    plt.tight_layout()
    plt.grid(True)
    plt.legend(fontsize=8)

    # Save the figure
    plt.savefig('06_Cumulative_Return.png', dpi=300, bbox_inches='tight')

    # Display the plot
    return plt.show()

plot_time_series(
    df=strat,
    plot_start_date=START_DATE,
    plot_end_date=END_DATE,
    plot_columns=["Cumulative_Return"],
    title="Harry Browne Permanent Portfolio Cumulative Return",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Cumulative Return",
    y_format="Decimal",
    y_format_decimal_places="Auto",
    y_tick_spacing="Auto",
    y_tick_rotation=0,
    grid=True,
    legend=True,
    legend_location="upper left",
    export_plot=False,
)

plot_cumulative_return(strat)

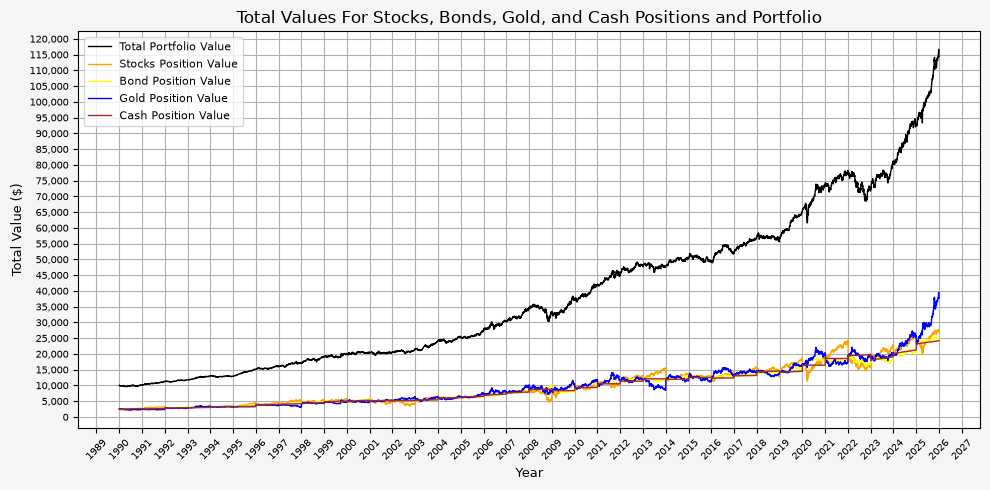

def plot_values(strat_df):
    # Generate plot
    plt.figure(figsize=(10, 5), facecolor = '#F5F5F5')

    # Plotting data
    plt.plot(strat_df.index, strat_df['Total_AA_$_Invested'], label='Total Portfolio Value', linestyle='-', color='black', linewidth=1)
    plt.plot(strat_df.index, strat_df['Stocks_AA_$_Invested'], label='Stocks Position Value', linestyle='-', color='orange', linewidth=1)
    plt.plot(strat_df.index, strat_df['Bonds_AA_$_Invested'], label='Bond Position Value', linestyle='-', color='yellow', linewidth=1)
    plt.plot(strat_df.index, strat_df['Gold_AA_$_Invested'], label='Gold Position Value', linestyle='-', color='blue', linewidth=1)
    plt.plot(strat_df.index, strat_df['Cash_AA_$_Invested'], label='Cash Position Value', linestyle='-', color='brown', linewidth=1)

    # Set X axis
    # x_tick_spacing = 5  # Specify the interval for x-axis ticks
    # plt.gca().xaxis.set_major_locator(MultipleLocator(x_tick_spacing))
    plt.gca().xaxis.set_major_locator(mdates.YearLocator())
    plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%Y'))
    plt.xlabel('Year', fontsize = 9)
    plt.xticks(rotation = 45, fontsize = 7)
    # plt.xlim(, )

    # Set Y axis
    y_tick_spacing = 5000  # Specify the interval for y-axis ticks
    plt.gca().yaxis.set_major_locator(MultipleLocator(y_tick_spacing))
    plt.gca().yaxis.set_major_formatter(mtick.FuncFormatter(lambda x, pos: '{:,.0f}'.format(x))) # Adding commas to y-axis labels
    plt.ylabel('Total Value ($)', fontsize = 9)
    plt.yticks(fontsize = 7)
    # plt.ylim(0, 75000)

    # Set title, etc.
    plt.title('Total Values For Stocks, Bonds, Gold, and Cash Positions and Portfolio', fontsize = 12)

    # Set the grid & legend
    plt.tight_layout()
    plt.grid(True)
    plt.legend(fontsize=8)

    # Save the figure
    plt.savefig('07_Portfolio_Values.png', dpi=300, bbox_inches='tight')

    # Display the plot
    return plt.show()

plot_values(strat)

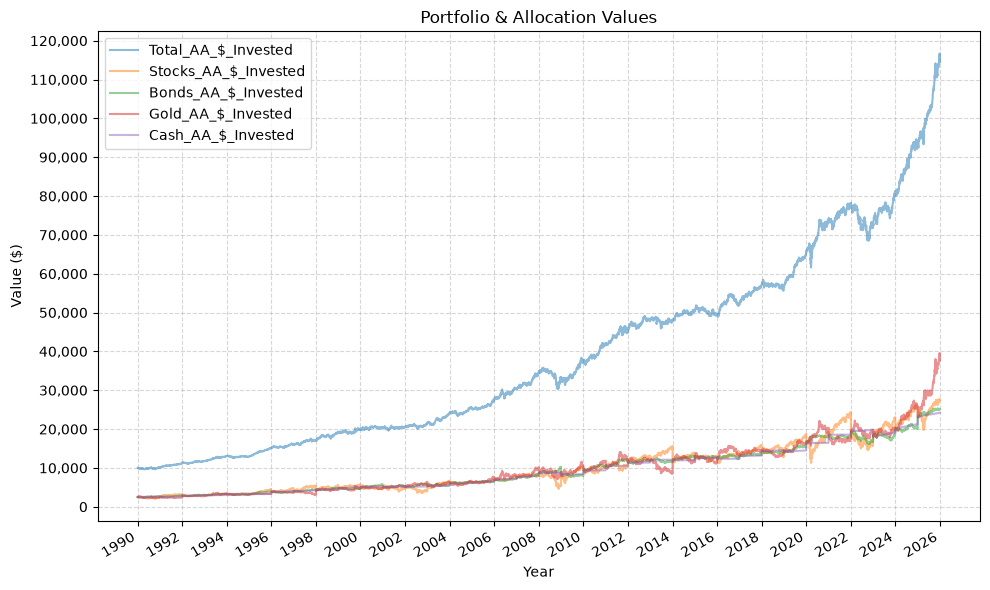

plot_time_series(
    df=strat,
    plot_start_date=START_DATE,
    plot_end_date=END_DATE,
    plot_columns=["Total_AA_$_Invested", "Stocks_AA_$_Invested", "Bonds_AA_$_Invested", "Gold_AA_$_Invested", "Cash_AA_$_Invested"],
    title="Portfolio & Allocation Values",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Value ($)",
    y_format="Decimal",
    y_format_decimal_places="Auto",
    y_tick_spacing="Auto",
    y_tick_rotation=0,
    grid=True,
    legend=True,
    legend_location="upper left",
    export_plot=False,
)

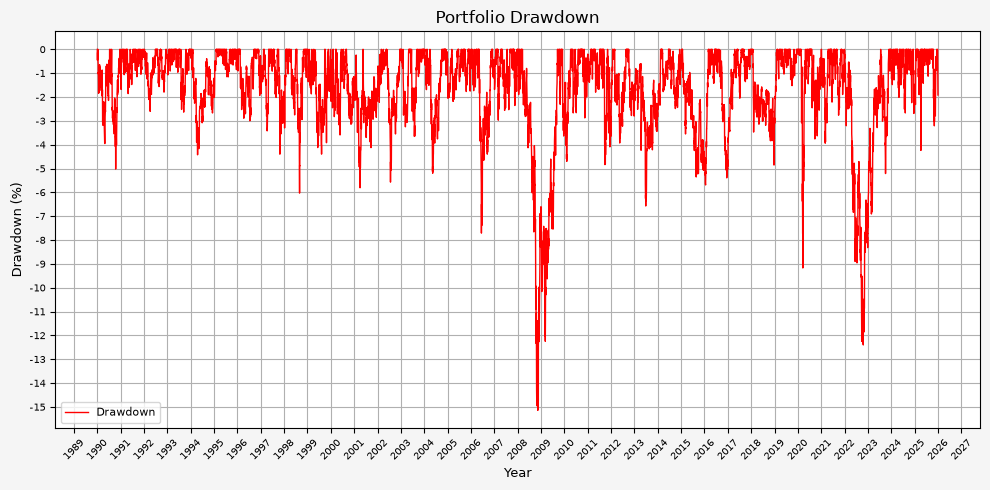

def plot_drawdown(strat_df):
    rolling_max = strat_df['Total_AA_$_Invested'].cummax()
    drawdown = (strat_df['Total_AA_$_Invested'] - rolling_max) / rolling_max * 100

    # Generate plot
    plt.figure(figsize=(10, 5), facecolor = '#F5F5F5')

    # Plotting data
    plt.plot(strat_df.index, drawdown, label='Drawdown', linestyle='-', color='red', linewidth=1)

    # Set X axis
    # x_tick_spacing = 5  # Specify the interval for x-axis ticks
    # plt.gca().xaxis.set_major_locator(MultipleLocator(x_tick_spacing))
    plt.gca().xaxis.set_major_locator(mdates.YearLocator())
    plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%Y'))
    plt.xlabel('Year', fontsize = 9)
    plt.xticks(rotation = 45, fontsize = 7)
    # plt.xlim(, )

    # Set Y axis
    y_tick_spacing = 1  # Specify the interval for y-axis ticks
    plt.gca().yaxis.set_major_locator(MultipleLocator(y_tick_spacing))
    # plt.gca().yaxis.set_major_formatter(mtick.FuncFormatter(lambda x, pos: '{:,.0f}'.format(x))) # Adding commas to y-axis labels
    plt.gca().yaxis.set_major_formatter(mtick.FuncFormatter(lambda x, pos: '{:.0f}'.format(x))) # Adding 0 decimal places to y-axis labels
    plt.ylabel('Drawdown (%)', fontsize = 9)
    plt.yticks(fontsize = 7)
    # plt.ylim(-20, 0)

    # Set title, etc.
    plt.title('Portfolio Drawdown', fontsize = 12)

    # Set the grid & legend
    plt.tight_layout()
    plt.grid(True)
    plt.legend(fontsize=8)

    # Save the figure
    plt.savefig('08_Portfolio_Drawdown.png', dpi=300, bbox_inches='tight')

    # Display the plot
    return plt.show()

plot_drawdown(strat)

rolling_max = strat['Total_AA_$_Invested'].cummax()
drawdown = (strat['Total_AA_$_Invested'] - rolling_max) / rolling_max

# Merge drawdown with the original dataframe
strat = strat.copy()
strat['Drawdown'] = drawdown

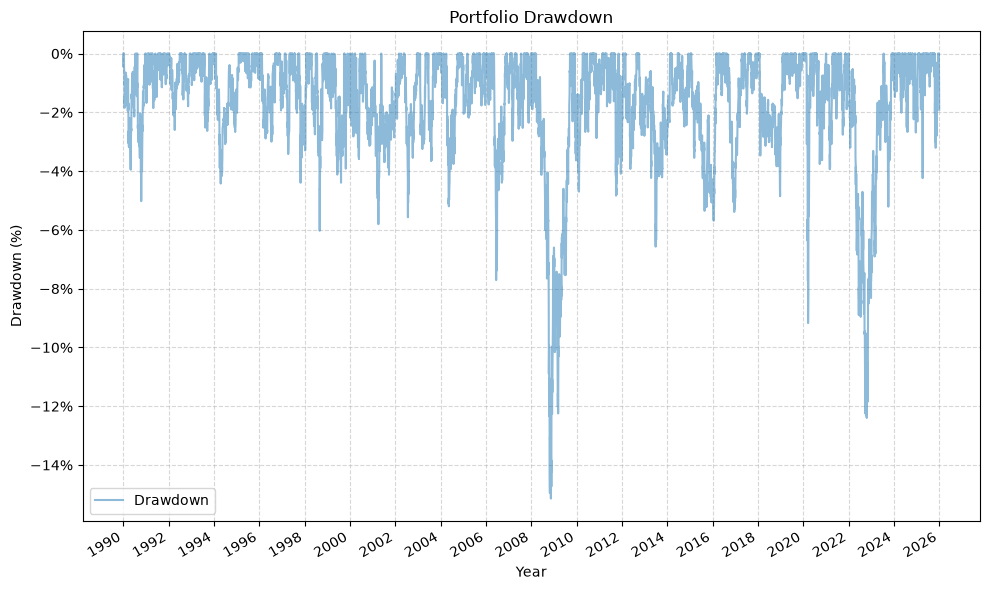

plot_time_series(
    df=strat,
    plot_start_date=START_DATE,
    plot_end_date=END_DATE,
    plot_columns=["Drawdown"],
    title="Portfolio Drawdown",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Drawdown (%)",
    y_format="Percentage",
    y_format_decimal_places=0,
    y_tick_spacing="Auto",
    y_tick_rotation=0,
    grid=True,
    legend=True,
    legend_location="lower left",
    export_plot=False,
)

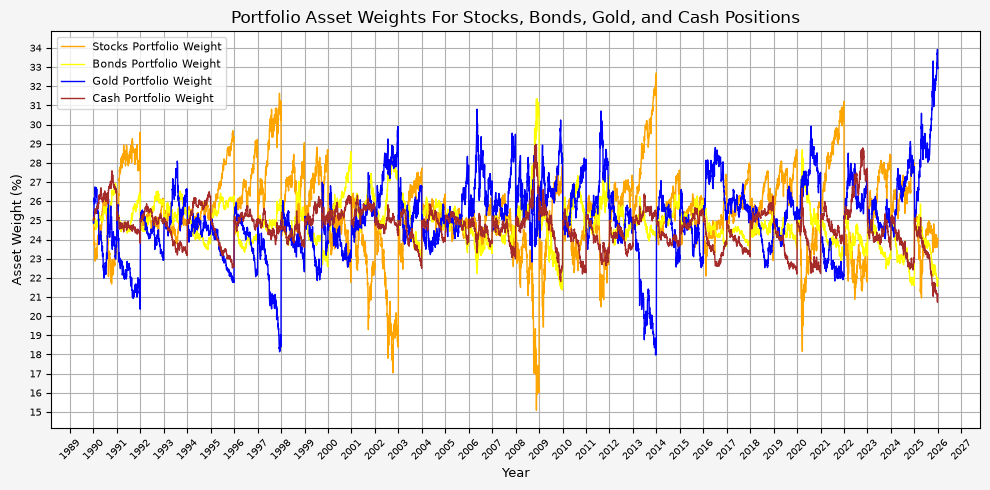

def plot_asset_weights(strat_df):
    # Generate plot
    plt.figure(figsize=(10, 5), facecolor = '#F5F5F5')

    # Plotting data
    plt.plot(strat_df.index, strat_df['Stocks_AA_Port_%'] * 100, label='Stocks Portfolio Weight', linestyle='-', color='orange', linewidth=1)
    plt.plot(strat_df.index, strat_df['Bonds_AA_Port_%'] * 100, label='Bonds Portfolio Weight', linestyle='-', color='yellow', linewidth=1)
    plt.plot(strat_df.index, strat_df['Gold_AA_Port_%'] * 100, label='Gold Portfolio Weight', linestyle='-', color='blue', linewidth=1)
    plt.plot(strat_df.index, strat_df['Cash_AA_Port_%'] * 100, label='Cash Portfolio Weight', linestyle='-', color='brown', linewidth=1)

    # Set X axis
    # x_tick_spacing = 5  # Specify the interval for x-axis ticks
    # plt.gca().xaxis.set_major_locator(MultipleLocator(x_tick_spacing))
    plt.gca().xaxis.set_major_locator(mdates.YearLocator())
    plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%Y'))
    plt.xlabel('Year', fontsize = 9)
    plt.xticks(rotation = 45, fontsize = 7)
    # plt.xlim(, )

    # Set Y axis
    y_tick_spacing = 1  # Specify the interval for y-axis ticks
    plt.gca().yaxis.set_major_locator(MultipleLocator(y_tick_spacing))
    # plt.gca().yaxis.set_major_formatter(mtick.FuncFormatter(lambda x, pos: '{:,.0f}'.format(x))) # Adding commas to y-axis labels
    plt.ylabel('Asset Weight (%)', fontsize = 9)
    plt.yticks(fontsize = 7)
    # plt.ylim(14, 36)

    # Set title, etc.
    plt.title('Portfolio Asset Weights For Stocks, Bonds, Gold, and Cash Positions', fontsize = 12)

    # Set the grid & legend
    plt.tight_layout()
    plt.grid(True)
    plt.legend(fontsize=8)

    # Save the figure
    plt.savefig('09_Portfolio_Weights.png', dpi=300, bbox_inches='tight')

    # Display the plot
    return plt.show()

plot_asset_weights(strat)

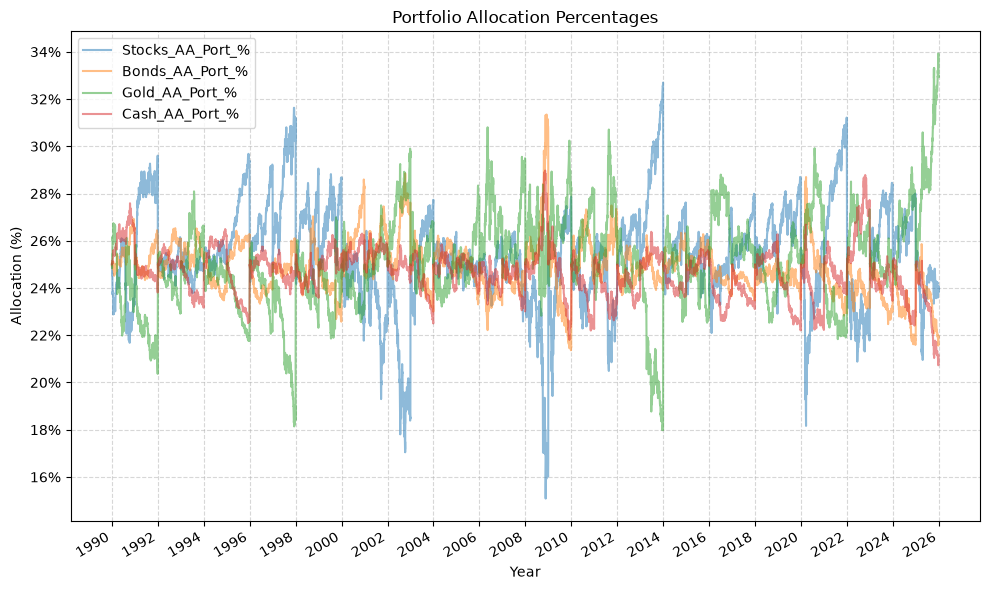

plot_time_series(
    df=strat,
    plot_start_date=START_DATE,
    plot_end_date=END_DATE,
    plot_columns=["Stocks_AA_Port_%", "Bonds_AA_Port_%", "Gold_AA_Port_%", "Cash_AA_Port_%"],
    title="Portfolio Allocation Percentages",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Allocation (%)",
    y_format="Percentage",
    y_format_decimal_places=0,
    y_tick_spacing="Auto",
    y_tick_rotation=0,
    grid=True,
    legend=True,
    legend_location="upper left",
    export_plot=False,
)

def plot_annual_returns(return_df):
    # Generate plot
    plt.figure(figsize=(10, 5), facecolor = '#F5F5F5')

    # Plotting data
    plt.bar(return_df.index, return_df['Return'] * 100, label='Annual Returns', width=0.5)  # width adjusted for better spacing

    # Set X axis
    x_tick_spacing = 1  # Specify the interval for x-axis ticks
    plt.gca().xaxis.set_major_locator(MultipleLocator(x_tick_spacing))
    # plt.gca().xaxis.set_major_locator(mdates.YearLocator())
    # plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%Y'))
    plt.xlabel('Year', fontsize = 9)
    plt.xticks(rotation = 45, fontsize = 7)
    # plt.xlim(, )

    # Set Y axis
    y_tick_spacing = 1  # Specify the interval for y-axis ticks
    plt.gca().yaxis.set_major_locator(MultipleLocator(y_tick_spacing))
    # plt.gca().yaxis.set_major_formatter(mtick.FuncFormatter(lambda x, pos: '{:,.0f}'.format(x))) # Adding commas to y-axis labels
    plt.ylabel('Annual Return (%)', fontsize = 9)
    plt.yticks(fontsize = 7)
    # plt.ylim(-20, 20)

    # Set title, etc.
    plt.title('Portfolio Annual Returns', fontsize = 12)

    # Set the grid & legend
    plt.tight_layout()
    plt.grid(True)
    plt.legend(fontsize=8)

    # Save the figure
    plt.savefig('10_Portfolio_Annual_Returns.png', dpi=300, bbox_inches='tight')

    # Display the plot
    return plt.show()

plot_annual_returns(strat_annual_returns_df)

plot_bar(
    df=strat_annual_returns_df.set_index(pd.to_datetime(strat_annual_returns_df.index, format="%Y")),
    plot_start_date=None,
    plot_end_date=None,
    plot_columns=["Return"],
    title="Annual Portfolio Returns",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Annual Return (%)",
    y_format="Percentage",
    y_format_decimal_places=0,
    y_tick_spacing=.05,
    y_tick_rotation=0,
    grid=True,
    legend=True,
)

# Target weights for the tilted portfolio
tilt_weights = {
    'Stocks': 0.30,
    'Bonds': 0.30,
    'Gold': 0.30,
    'Cash': 0.10,
}

strat_tilt = strategy_harry_brown_perm_port(
    fund_list=fund_list,
    starting_cash=starting_cash,
    cash_contrib=cash_contrib,
    close_prices_df=perm_port,
    rebal_month=1,
    rebal_day=1,
    rebal_per_high=1.40,
    rebal_per_low=0.60,
    excel_export=False,
    pickle_export=False,
    output_confirmation=True,
    target_weights=tilt_weights,
)

strat_tilt = strat_tilt.set_index('Date')

weight_comparison = pd.concat([
    summary_stats(
        fund_list=fund_list,
        df=strat[['Return']],
        period="Daily",
        use_calendar_days=False,
        excel_export=False,
        pickle_export=False,
        output_confirmation=False,
    ).rename(index={'Return': '25/25/25/25'}),
    summary_stats(
        fund_list=fund_list,
        df=strat_tilt[['Return']],
        period="Daily",
        use_calendar_days=False,
        excel_export=False,
        pickle_export=False,
        output_confirmation=False,
    ).rename(index={'Return': '30/30/30/10'}),
])

display(weight_comparison)

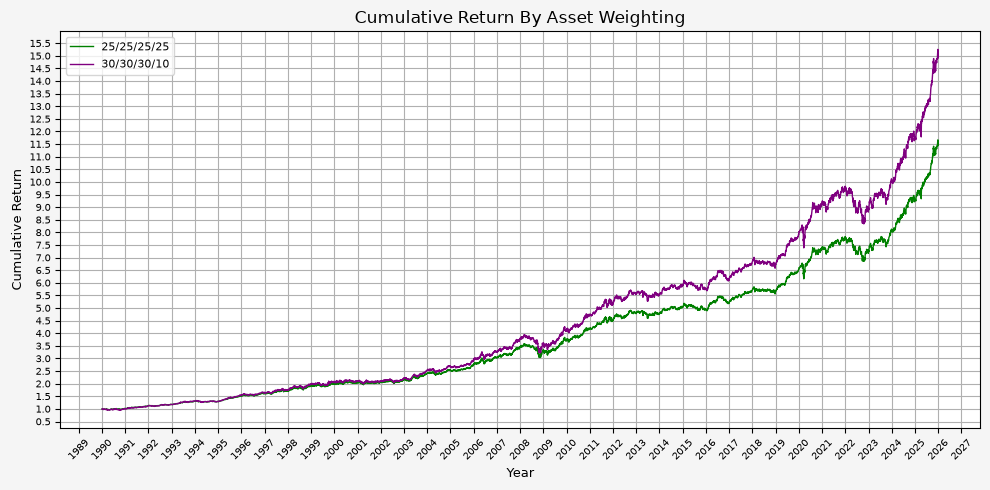

def plot_weight_comparison(base_df, tilt_df):
    # Generate plot
    plt.figure(figsize=(10, 5), facecolor = '#F5F5F5')

    # Plotting data
    plt.plot(base_df.index, base_df['Cumulative_Return'], label = '25/25/25/25', linestyle='-', color='green', linewidth=1)
    plt.plot(tilt_df.index, tilt_df['Cumulative_Return'], label = '30/30/30/10', linestyle='-', color='purple', linewidth=1)

    # Set X axis
    plt.gca().xaxis.set_major_locator(mdates.YearLocator())
    plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%Y'))
    plt.xlabel('Year', fontsize = 9)
    plt.xticks(rotation = 45, fontsize = 7)

    # Set Y axis
    y_tick_spacing = 0.5  # Specify the interval for y-axis ticks
    plt.gca().yaxis.set_major_locator(MultipleLocator(y_tick_spacing))
    plt.ylabel('Cumulative Return', fontsize = 9)
    plt.yticks(fontsize = 7)

    # Set title, etc.
    plt.title('Cumulative Return By Asset Weighting', fontsize = 12)

    # Set the grid & legend
    plt.tight_layout()
    plt.grid(True)
    plt.legend(fontsize=8)

    # Save the figure
    plt.savefig('11_Weight_Comparison.png', dpi=300, bbox_inches='tight')

    # Display the plot
    return plt.show()

plot_weight_comparison(strat, strat_tilt)

base = strat[["Cumulative_Return"]].rename(columns={"Cumulative_Return": "Base_Cumulative_Return"})
tilt = strat_tilt[["Cumulative_Return"]].rename(columns={"Cumulative_Return": "Tilt_Cumulative_Return"})

combined = base.merge(tilt, left_index=True, right_index=True, how="outer")

plot_time_series(
    df=combined,
    plot_start_date=START_DATE,
    plot_end_date=END_DATE,
    plot_columns=["Base_Cumulative_Return", "Tilt_Cumulative_Return"],
    title="Harry Browne Permanent Portfolio Cumulative Return",
    x_label="Year",
    x_format="Year",
    x_tick_spacing=2,
    x_tick_start=None,
    x_tick_rotation=30,
    y_label="Cumulative Return",
    y_format="Decimal",
    y_format_decimal_places="Auto",
    y_tick_spacing="Auto",
    y_tick_rotation=0,
    grid=True,
    legend=True,
    legend_location="upper left",
    export_plot=False,
)
