Asset Class Return Correlations

# Standard Library
import os
import sys
import warnings

from IPython.display import display, Markdown
from itertools import combinations, count
from pathlib import Path

# Data Handling
import numpy as np
import pandas as pd

# Suppress warnings
warnings.filterwarnings("ignore")

# Pandas display options
pd.set_option("display.float_format", lambda x: f"%.2f" % x)

# Add the source subdirectory to the system path to allow import config from settings.py
current_directory = Path(os.getcwd())
BASE_DIR = current_directory.parent.parent.parent
src_directory = BASE_DIR / "src"
sys.path.append(str(src_directory)) if str(src_directory) not in sys.path else None

# Import settings.py
from settings import config

# Add other configured directories
CONTENT_DIR = config("CONTENT_DIR")
POSTS_DIR = config("POSTS_DIR")
PAGES_DIR = config("PAGES_DIR")
PUBLIC_DIR = config("PUBLIC_DIR")
SOURCE_DIR = config("SOURCE_DIR")
DATA_DIR = config("DATA_DIR")
DATA_MANUAL_DIR = config("DATA_MANUAL_DIR")

from load_data import load_data
from plot_heatmap import plot_heatmap
from plot_histogram import plot_histogram
from plot_scatter import plot_scatter
from plot_time_series import plot_time_series
from summary_stats import summary_stats
from yf_pull_data import yf_pull_data

figure_number = count(1)
table_number = count(1)

# Create list of tickers to pull data for
us_equity_tickers = ["IVV", "IJH", "IJR", "QQQ", "IWB", "IWD", "IWF", "IWM"]
intl_equity_tickers = ["EFA", "EEM", "IEV"]
equity_tickers = us_equity_tickers + intl_equity_tickers
bond_tickers = ["SHY", "IEF", "TLT", "AGG"]
commodity_tickers = ["GLD", "GSG"]
real_estate_tickers = ["IYR"]
cryptoasset_tickers = ["BTC-USD", "ETH-USD"]
etf_tickers = (
    us_equity_tickers
    + intl_equity_tickers
    + bond_tickers
    + commodity_tickers
    + real_estate_tickers
)

tickers_dict = {
    "IVV": "Large Cap US Stocks / S&P 500 -- IVV (iShares S&P 500 ETF)",
    "IJH": "Mid Cap US Stocks / S&P MidCap 400 -- IJH (iShares S&P MidCap 400 ETF)",
    "IJR": "Small Cap US Stocks / S&P SmallCap 600 -- IJR (iShares S&P SmallCap 600 ETF)",
    "QQQ": "US Tech Stocks / Nasdaq 100 -- QQQ (Invesco QQQ Trust, Series 1)",
    "IWB": "Large & Mid Cap US Stocks -- IWB (iShares Russell 1000 ETF)",
    "IWM": "Small Cap US Stocks -- IWM (iShares Russell 2000 ETF)",
    "IWD": "Large & Mid Cap US Value Stocks -- IWD (iShares Russell 1000 Value ETF)",
    "IWF": "Large & Mid Cap US Growth Stocks -- IWF (iShares Russell 1000 Growth ETF)",
    "EFA": "International Developed Market Stocks -- EFA (iShares MSCI EAFE ETF)",
    "EEM": "Emerging Market Stocks -- EEM (iShares MSCI Emerging Markets ETF)",
    "IEV": "European Stocks -- IEV (iShares S&P Europe 350 ETF)",
    "SHY": "Short-Term US Treasuries -- SHY (iShares 1-3 Year Treasury Bond ETF)",
    "IEF": "Medium-Term US Treasuries -- IEF (iShares 7-10 Year Treasury Bond ETF)",
    "TLT": "Long-Term US Treasuries -- TLT (iShares 20+ Year Treasury Bond ETF)",
    "AGG": "Aggregate Bonds -- AGG (iShares Core U.S. Aggregate Bond ETF)",
    "GLD": "Gold -- GLD (SPDR Gold Shares)",
    "GSG": "Commodities -- GSG (iShares S&P GSCI Commodity-Indexed Trust)",
    "IYR": "Real Estate -- IYR (iShares U.S. Real Estate ETF)",
    "BTC-USD": "Bitcoin -- BTC-USD (Bitcoin USD)",
    "ETH-USD": "Ethereum -- ETH-USD (Ethereum USD)",
}

for ticker in etf_tickers:
    yf_pull_data(
        base_directory=DATA_DIR,
        ticker=ticker,
        adjusted=False,
        source="Yahoo_Finance",
        asset_class="Exchange_Traded_Funds",
        excel_export=True,
        pickle_export=True,
        output_confirmation=False,
    )

for ticker in cryptoasset_tickers:
    yf_pull_data(
        base_directory=DATA_DIR,
        ticker=ticker,
        adjusted=False,
        source="Yahoo_Finance",
        asset_class="Cryptocurrencies",
        excel_export=True,
        pickle_export=True,
        output_confirmation=False,
    )

fund_data = pd.DataFrame()

for ticker in etf_tickers:
    data = load_data(
        base_directory=DATA_DIR,
        ticker=ticker,
        source="Yahoo_Finance",
        asset_class="Exchange_Traded_Funds",
        timeframe="Daily",
        file_format="pickle",
    )

    # Rename columns to "QQQ_Close", etc.
    data = data.rename(
        columns={
            "Adj Close": f"{ticker}_Adj_Close",
            "Close": f"{ticker}_Close",
            "High": f"{ticker}_High",
            "Low": f"{ticker}_Low",
            "Open": f"{ticker}_Open",
            "Volume": f"{ticker}_Volume",
        }
    )

    # Drop all columns except for the adjusted close price and date index
    data = data[[f"{ticker}_Adj_Close"]]

    # Calculate daily returns and add as new column
    data[f"{ticker}_Daily_Return"] = data[f"{ticker}_Adj_Close"].pct_change()

    # Concatenate the data for this ticker with the main fund_data DataFrame
    fund_data = pd.concat([fund_data, data], axis=1)

for ticker in cryptoasset_tickers:
    data = load_data(
        base_directory=DATA_DIR,
        ticker=ticker,
        source="Yahoo_Finance",
        asset_class="Cryptocurrencies",
        timeframe="Daily",
        file_format="pickle",
    )

    # Rename columns to "BTC-USD_Close", etc.
    data = data.rename(
        columns={
            "Adj Close": f"{ticker}_Adj_Close",
            "Close": f"{ticker}_Close",
            "High": f"{ticker}_High",
            "Low": f"{ticker}_Low",
            "Open": f"{ticker}_Open",
            "Volume": f"{ticker}_Volume",
        }
    )

    # Drop all columns except for the adjusted close price and date index
    data = data[[f"{ticker}_Adj_Close"]]

    # Calculate daily returns and add as new column
    data[f"{ticker}_Daily_Return"] = data[f"{ticker}_Adj_Close"].pct_change()

    # Concatenate the data for this ticker with the main fund_data DataFrame
    fund_data = pd.concat([fund_data, data], axis=1)

display(Markdown(f"Table {next(table_number)}: Fund Data"))
display(fund_data)

for ticker in tickers_dict.keys():
    print(f"First date for {ticker}: {fund_data[f'{ticker}_Daily_Return'].first_valid_index()}")

# Combine the etf_tickers and cryptoasset_tickers lists into a single list of all tickers
all_tickers = etf_tickers + cryptoasset_tickers

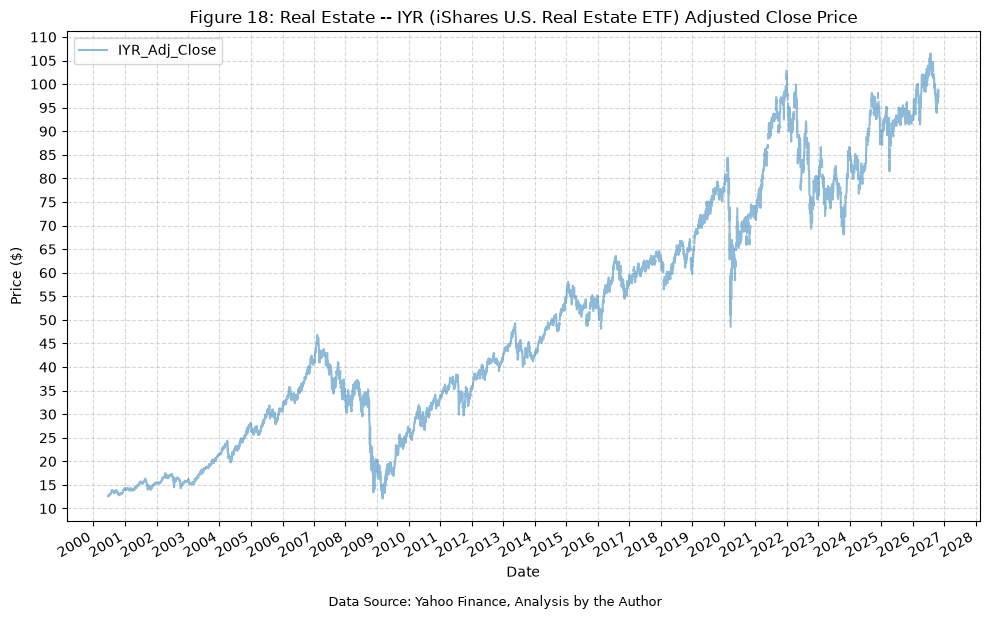

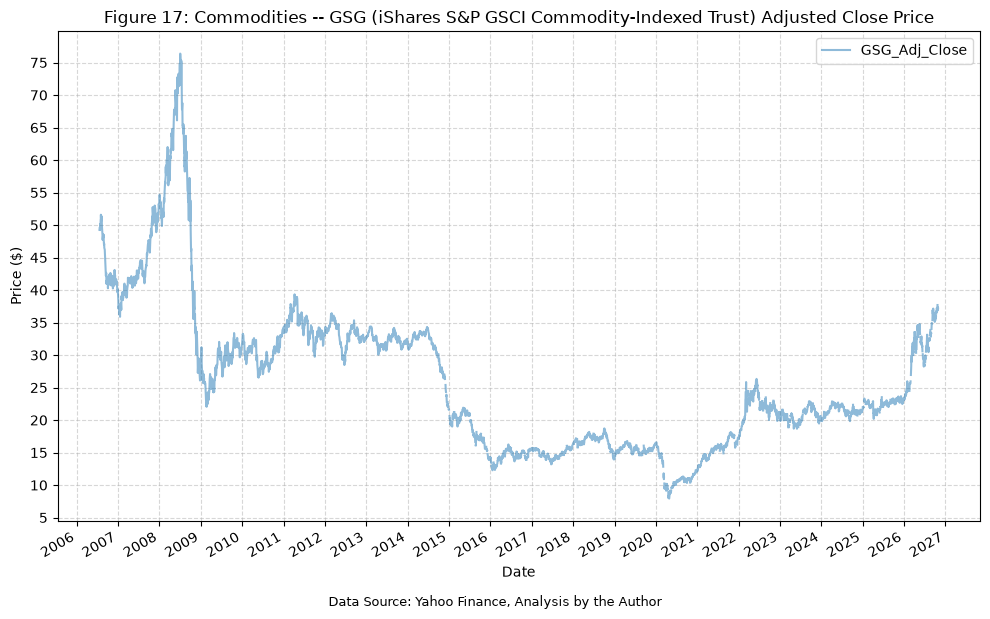

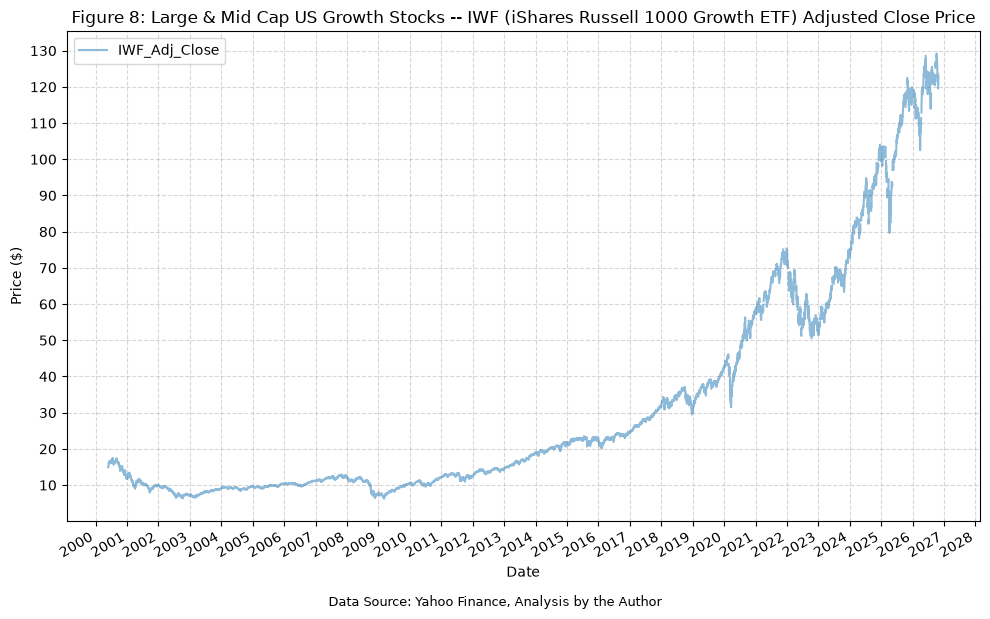

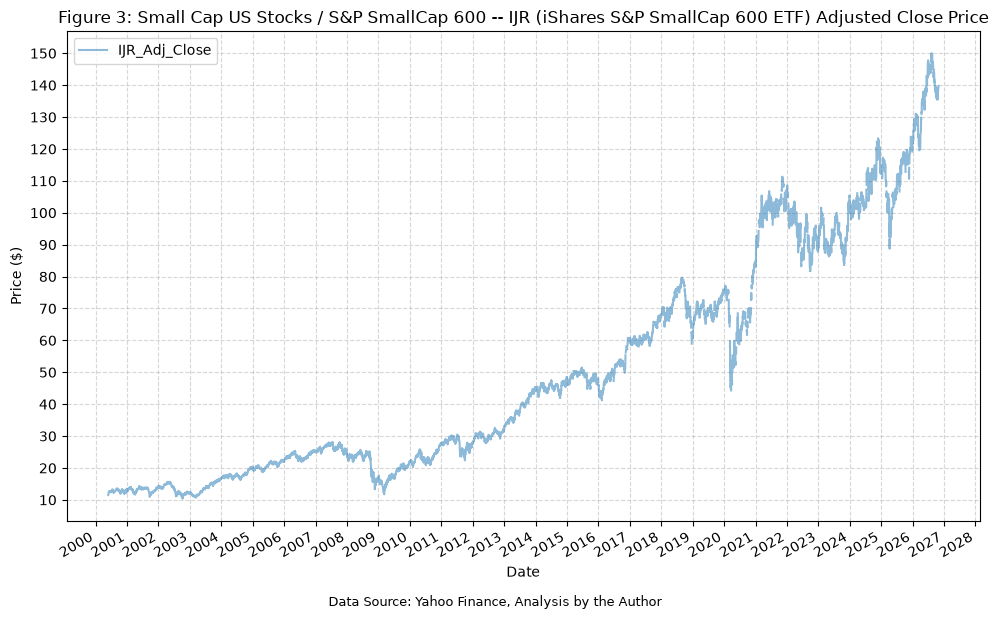

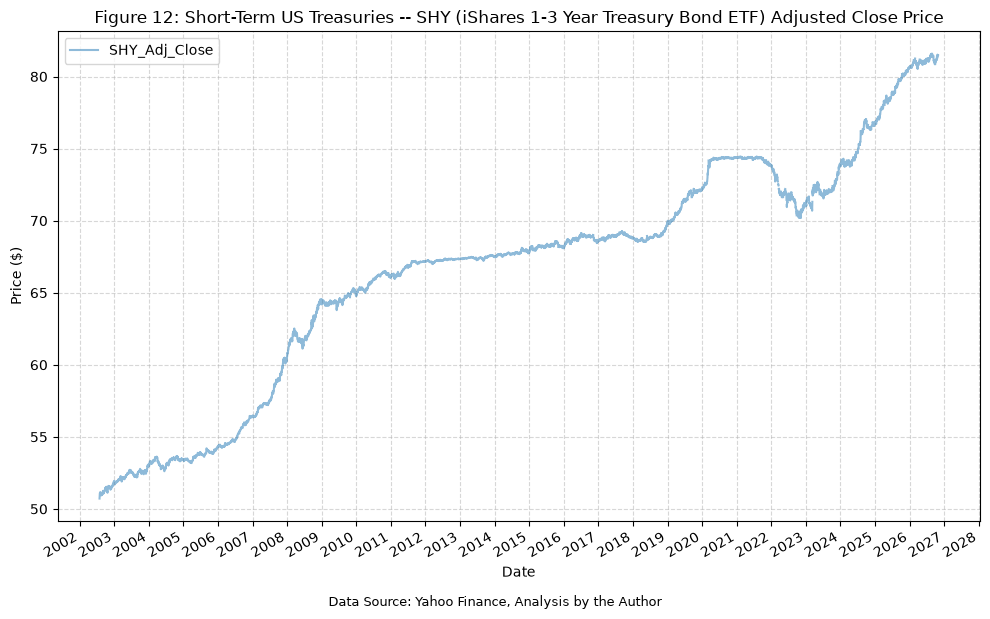

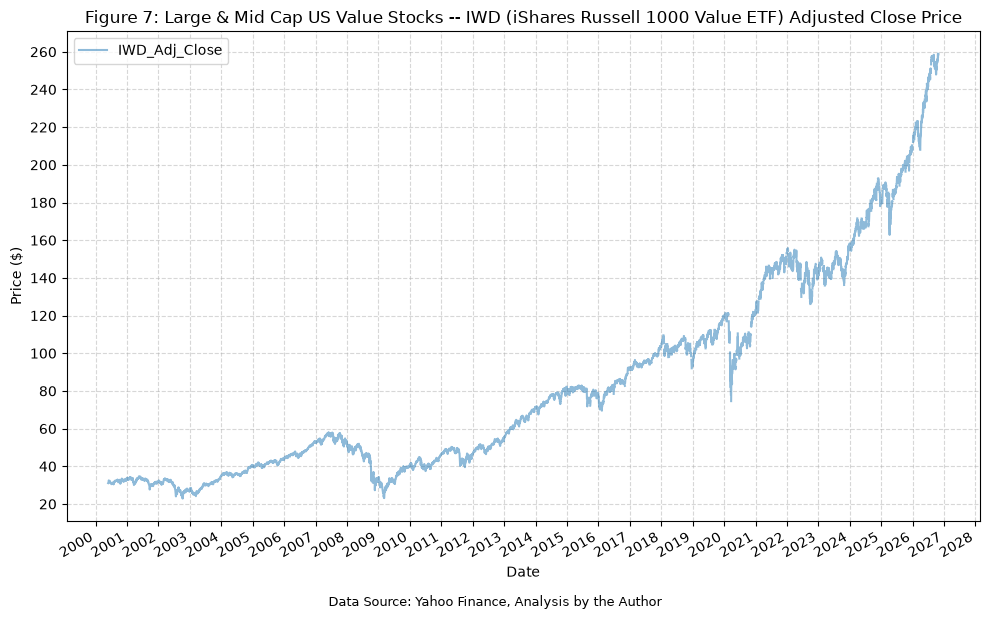

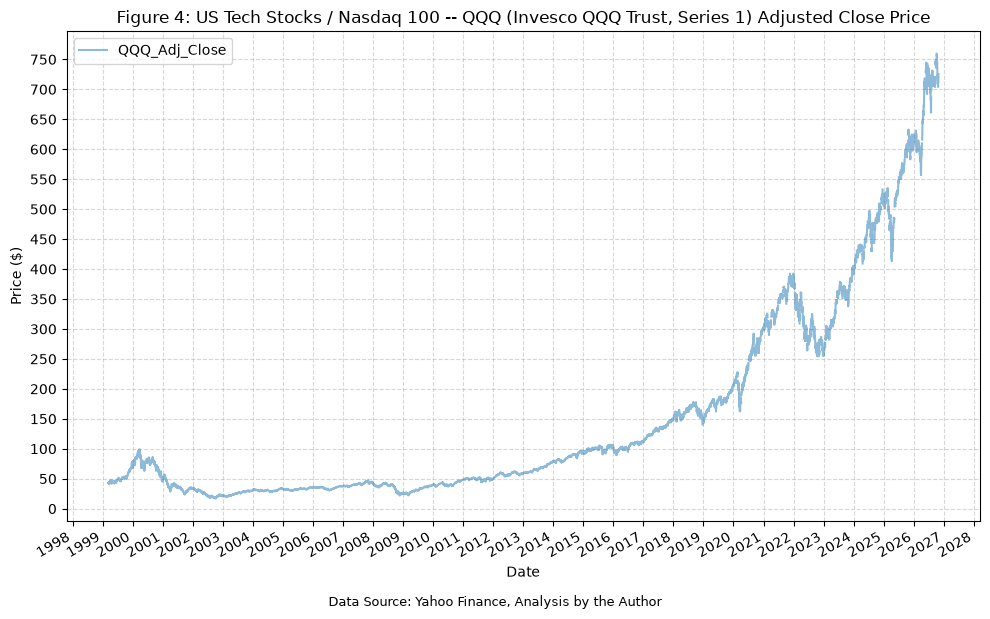

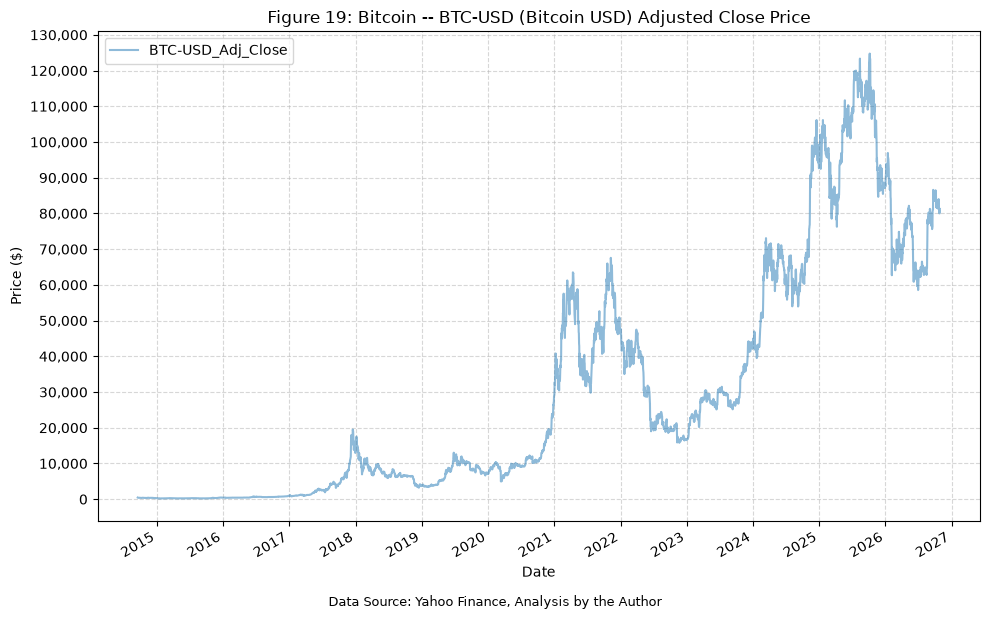

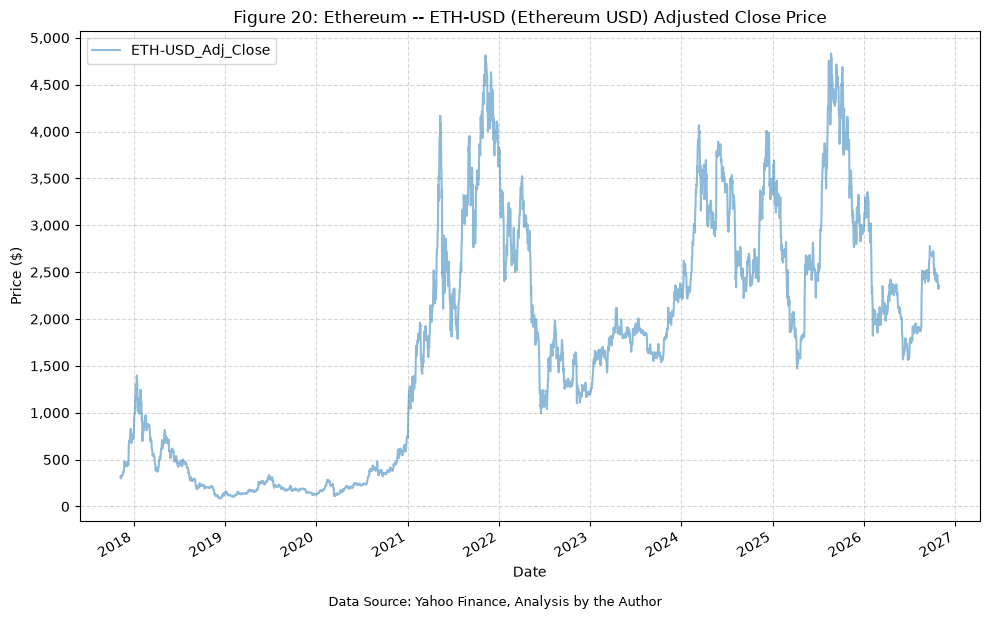

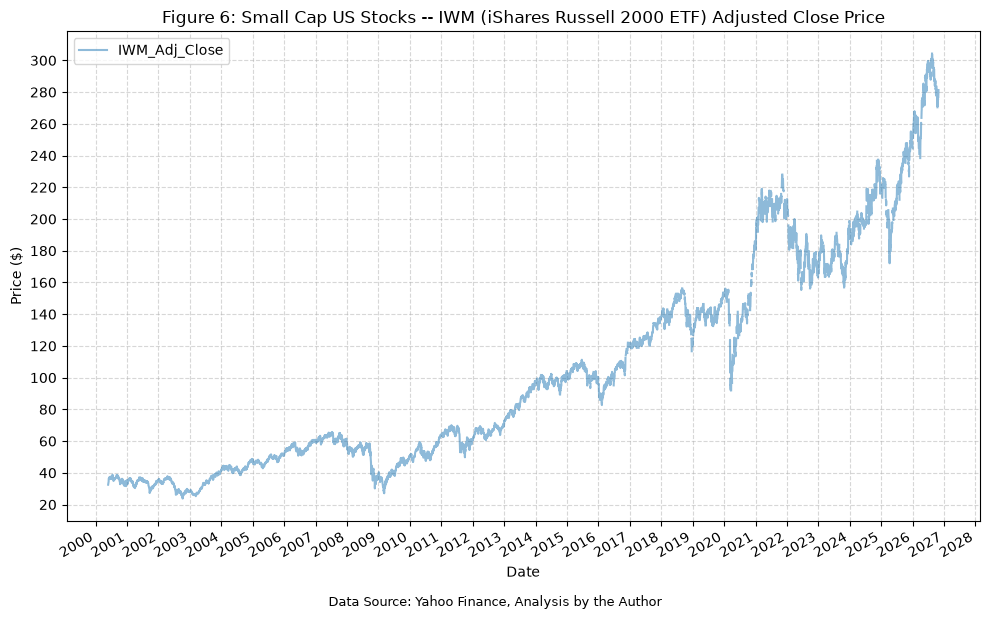

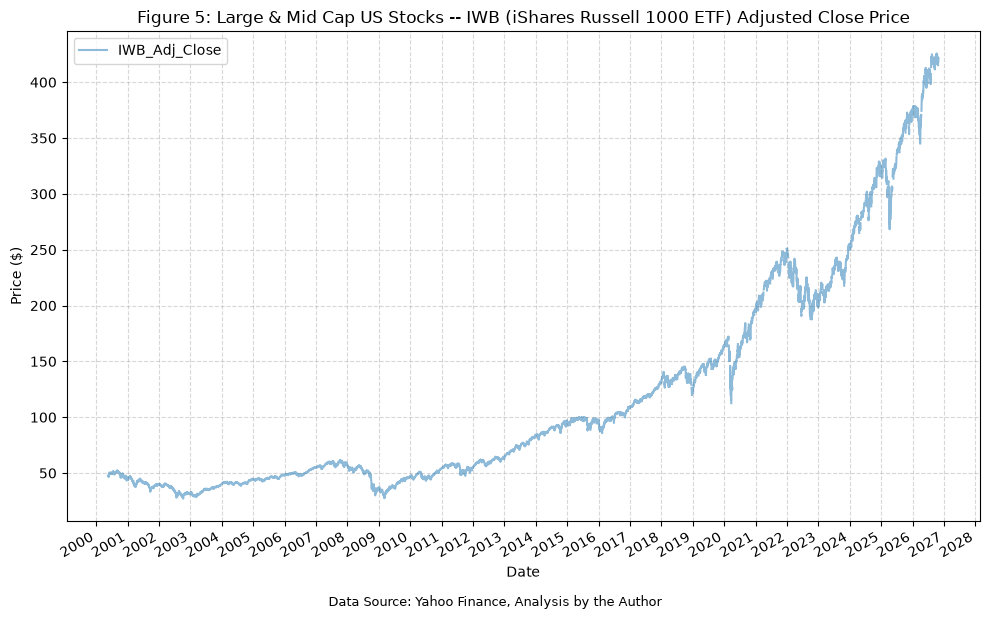

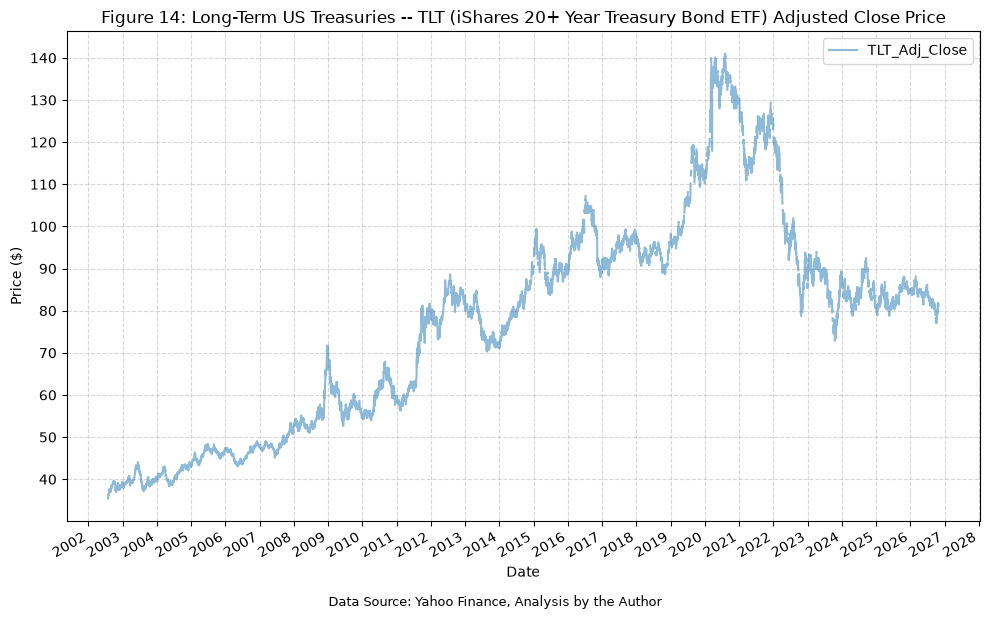

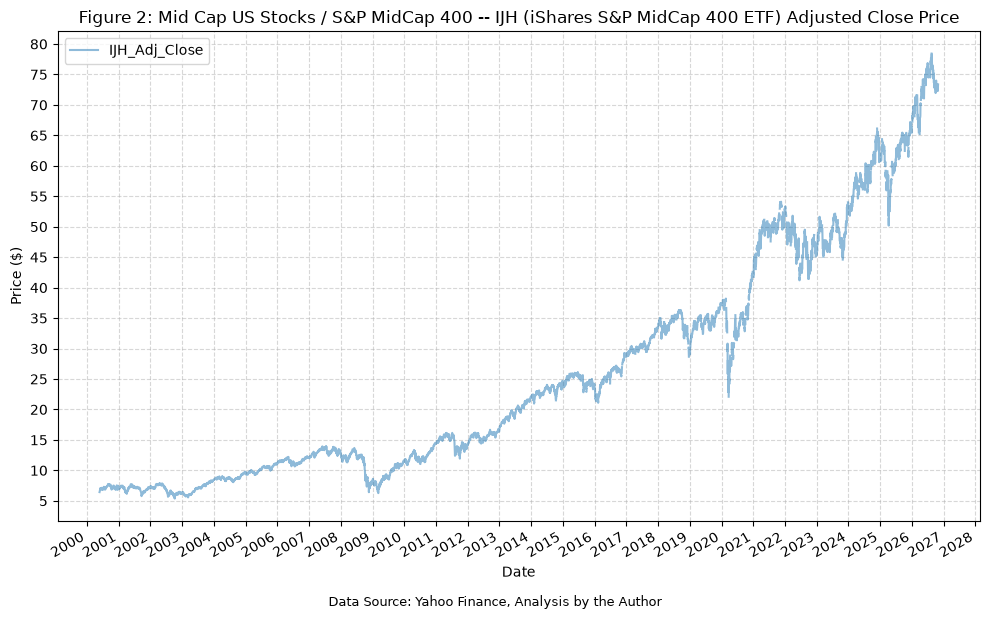

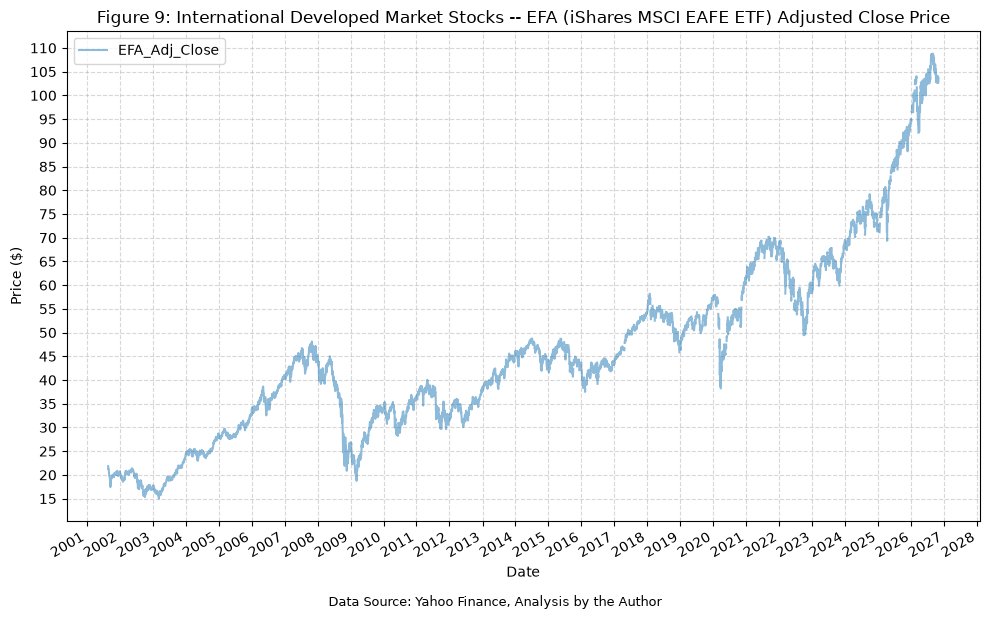

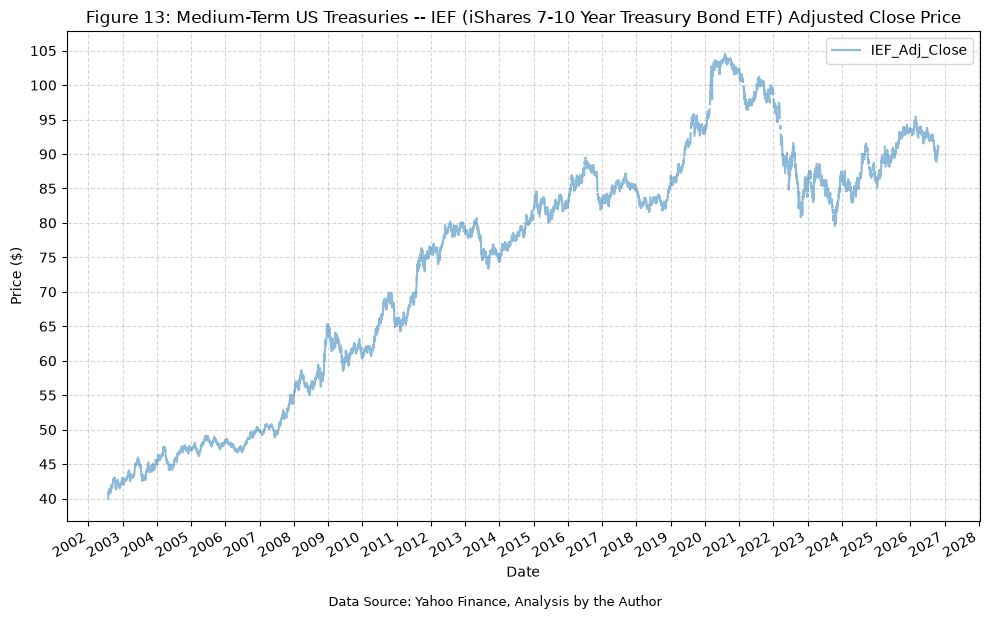

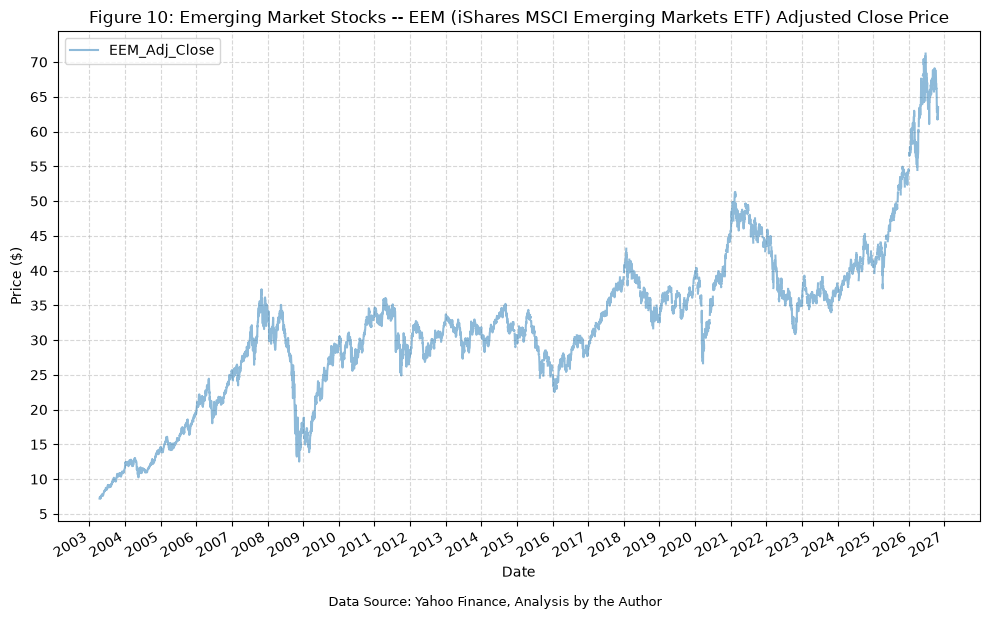

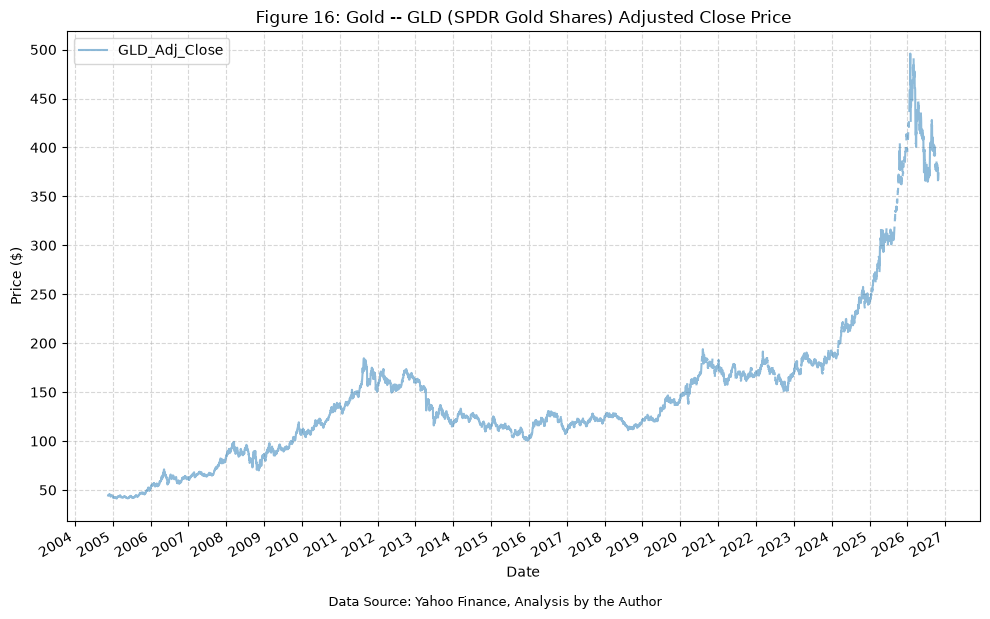

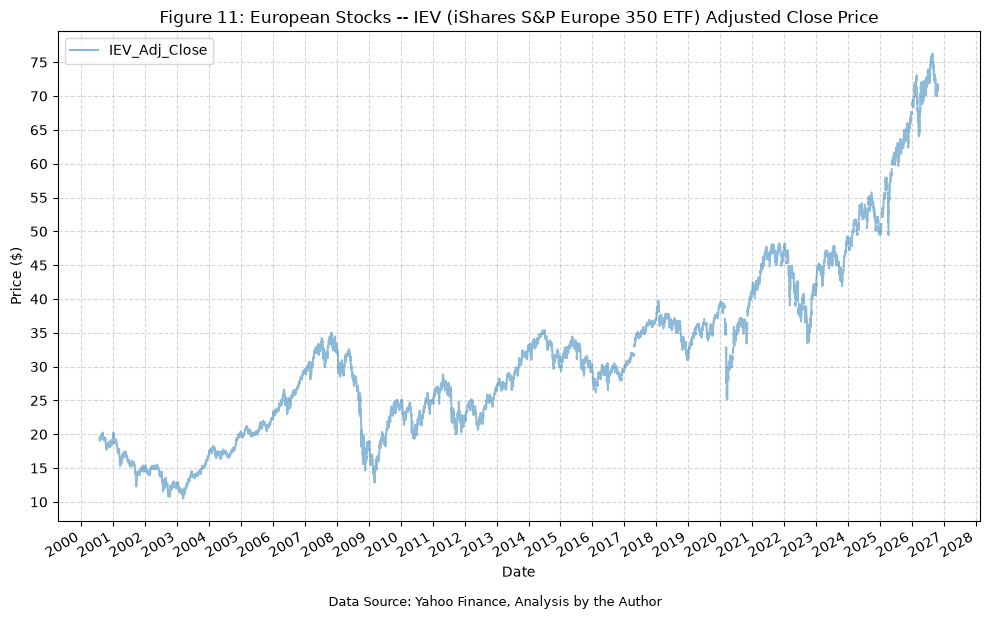

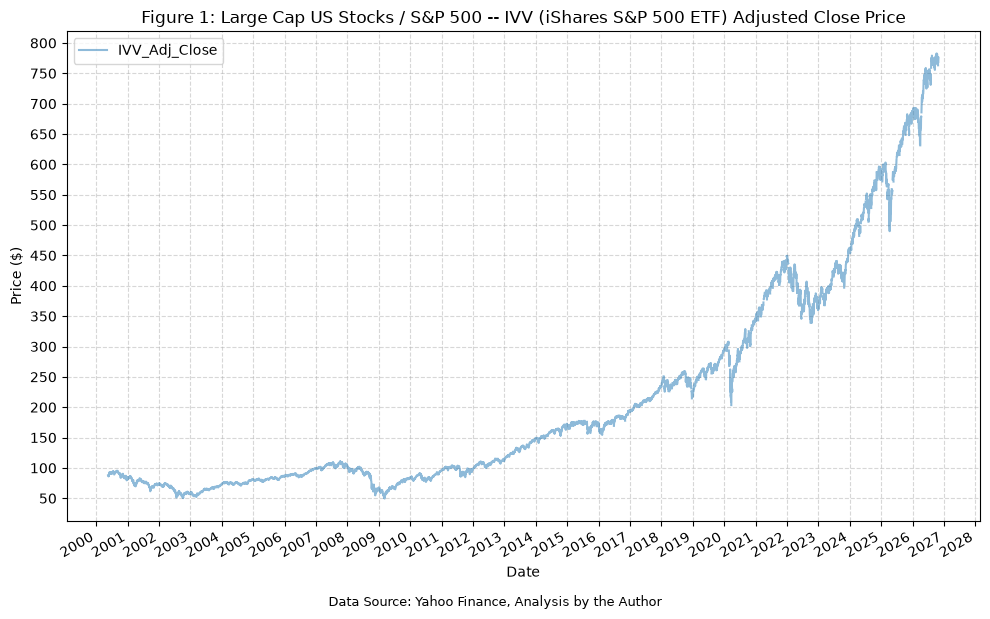

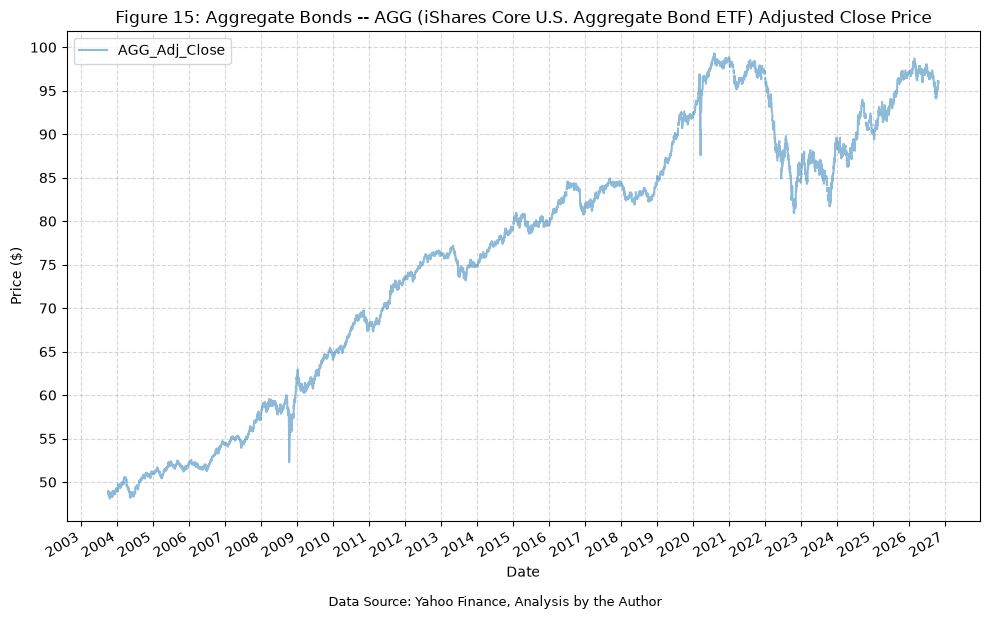

for ticker in tickers_dict.keys():
    plot_time_series(
        df=fund_data,
        plot_start_date=None,
        plot_end_date=None,
        plot_columns=[f"{ticker}_Adj_Close"],
        title=f"Figure {next(figure_number)}: {tickers_dict[ticker]} Adjusted Close Price",
        x_label="Date",
        x_format="Year",
        x_tick_spacing=1,
        x_tick_start=None,
        x_tick_rotation=30,
        y_label="Price ($)",
        y_format="Decimal",
        y_format_decimal_places="Auto",
        y_tick_spacing="Auto",
        y_tick_rotation=0,
        caption=f"Data Source: Yahoo Finance, Analysis by the Author",
    )

# Drop the adjusted close price columns, leaving only the daily return columns
daily_return_columns = [f"{ticker}_Daily_Return" for ticker in tickers_dict.keys()]
fund_data_daily_returns_all = fund_data[daily_return_columns]

# Drop the BTC and ETH daily return columns due to the limited history
fund_data_daily_returns_no_crypto = fund_data_daily_returns_all.drop(columns=["BTC-USD_Daily_Return", "ETH-USD_Daily_Return"])

# Print the shape of the fund_data_daily_returns_no_crypto DataFrame to confirm that the rows with missing data have been dropped
print(f"Shape of fund_data_daily_returns_no_crypto: {fund_data_daily_returns_no_crypto.shape}")
print(f"Rows to drop due to missing data: {fund_data_daily_returns_no_crypto.dropna().shape}")

# Drop the NaN values
fund_data_daily_returns_no_crypto = fund_data_daily_returns_no_crypto.dropna()

# Calculate the correlation matrix of the daily returns
correlation_matrix_no_crypto = fund_data_daily_returns_no_crypto.corr()

display(Markdown(f"Table {next(table_number)}: Correlation Matrix of Daily Returns (Excluding BTC and ETH)"))
display(correlation_matrix_no_crypto)

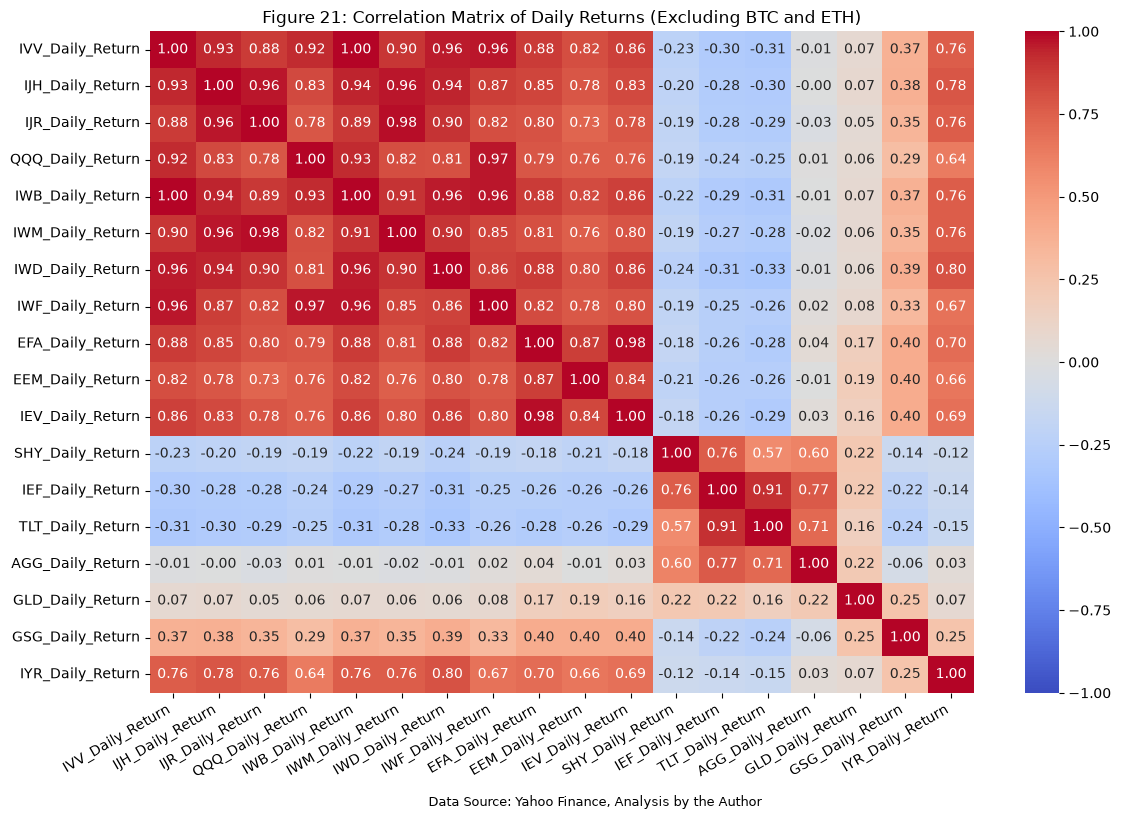

plot_heatmap(
    df=correlation_matrix_no_crypto,
    title=f"Figure {next(figure_number)}: Correlation Matrix of Daily Returns (Excluding BTC and ETH)",
    caption=f"Data Source: Yahoo Finance, Analysis by the Author",
)

# Print the shape of the fund_data_daily_returns DataFrame to confirm that the rows with missing data have been dropped
print(f"Shape of fund_data_daily_returns: {fund_data_daily_returns_all.shape}")
print(f"Rows to drop due to missing data: {fund_data_daily_returns_all.dropna().shape}")

# Drop the NaN values
fund_data_daily_returns = fund_data_daily_returns_all.dropna()

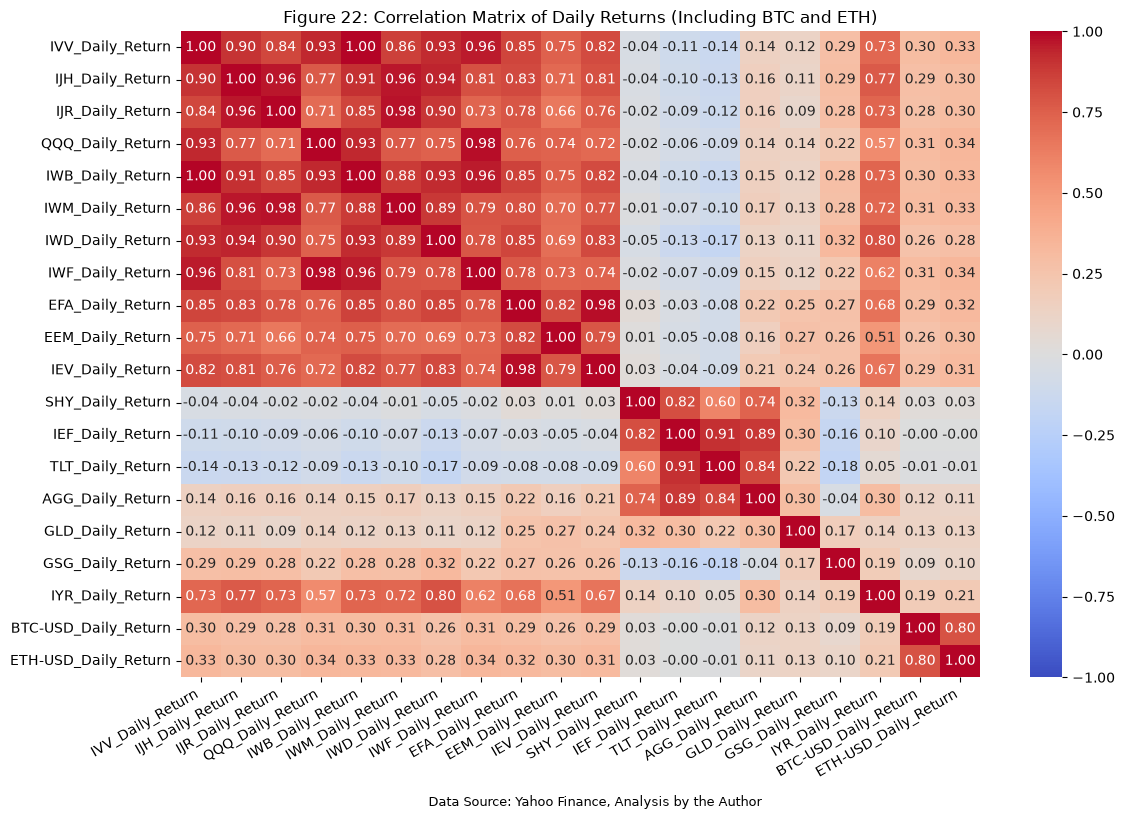

# Calculate the correlation matrix of the daily returns
correlation_matrix = fund_data_daily_returns.corr()

display(Markdown(f"Table {next(table_number)}: Correlation Matrix of Daily Returns (Including BTC and ETH)"))
display(correlation_matrix)

plot_heatmap(
    df=correlation_matrix,
    title=f"Figure {next(figure_number)}: Correlation Matrix of Daily Returns (Including BTC and ETH)",
    caption=f"Data Source: Yahoo Finance, Analysis by the Author",
)

# Define rolling windows in trading days
rolling_windows = {
    "3d": 3,  # 3 days (~3 trading days)
    "1w": 5,  # 1 week (~5 trading days)
    "2w": 10,  # 2 weeks (~10 trading days)
    "1m": 21,  # 1 month (~21 trading days)
    "3m": 63,  # 3 months (~63 trading days)
    "6m": 126,  # 6 months (~126 trading days)
    "1y": 252,  # 1 year (~252 trading days)
    "5y": 1260,  # 5 years (~1260 trading days)
    "10y": 2520,  # 10 years (~2520 trading days)
}

# Create temp list for tickers
tickers = ["IVV", "IJH", "IJR"]
pairs = list(combinations(tickers, 2))

# Create empty dictionary to store rolling correlation results
rolling_corr_results = {}

# Create empty DataFrame to store rolling correlation results
rolling_corr_results_df = pd.DataFrame()

# Calculate rolling correlations for each pair of tickers and each rolling window
for ticker1, ticker2 in pairs:
    try:
        temp_df = fund_data_daily_returns_no_crypto[
            [f"{ticker1}_Daily_Return", f"{ticker2}_Daily_Return"]
        ].dropna()
    except Exception as e:
        print(f"Error creating temp_df for {ticker1} and {ticker2}: {e}")
        continue

    for window_name, window_size in rolling_windows.items():
        try:
            rolling_corr = (
                temp_df[f"{ticker1}_Daily_Return"]
                .rolling(window=window_size)
                .corr(temp_df[f"{ticker2}_Daily_Return"])
            )

            # print(tickers_dict[f"{ticker1}"])
            # print(tickers_dict[f"{ticker2}"])

            rolling_corr_results[
                f"{ticker1}_{ticker2}_{window_name}"
            ] = rolling_corr
            rolling_corr_results_df = pd.concat(
                [
                    rolling_corr_results_df,
                    rolling_corr.to_frame(name=f"{ticker1}_{ticker2}_{window_name}"),
                ],
                axis=1,
            )

        except Exception as e:
            print(
                f"Error calculating rolling correlation for {ticker1} and {ticker2} with window {window_name}: {e}"
            )

display(Markdown(f"Table {next(table_number)}: Rolling Correlations"))
display(rolling_corr_results_df)

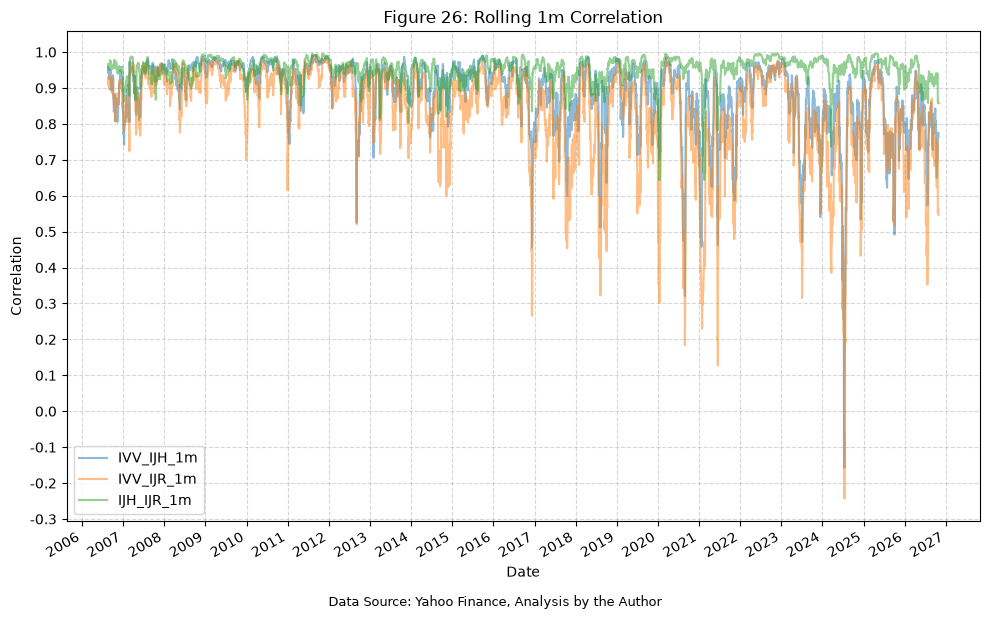

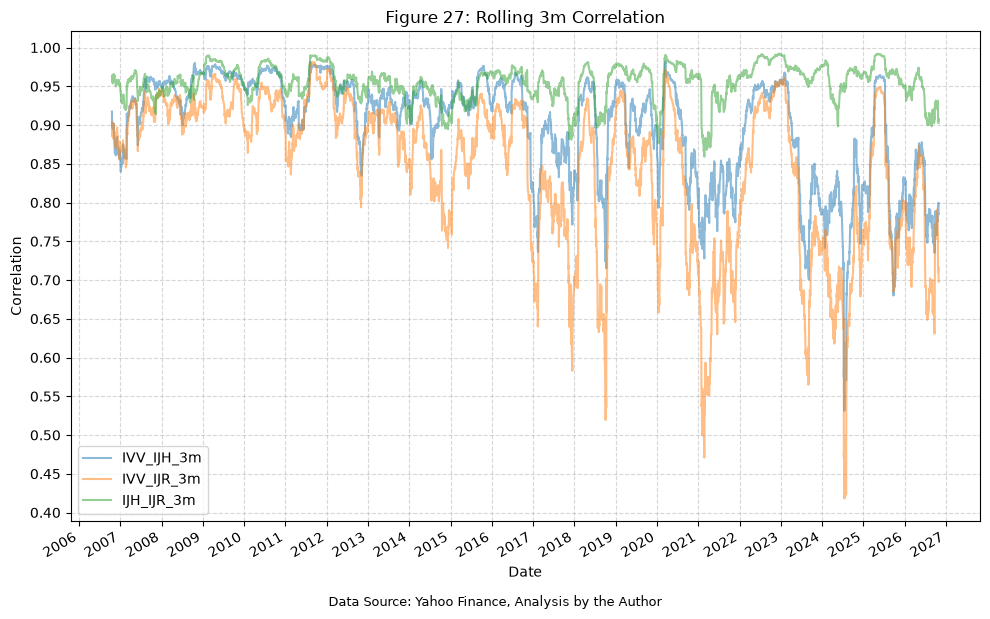

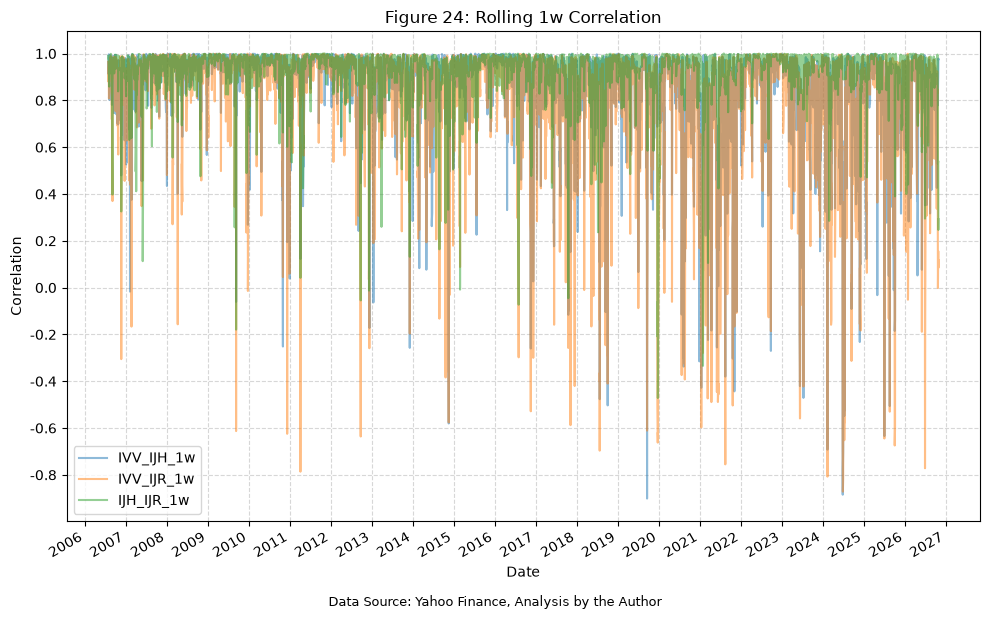

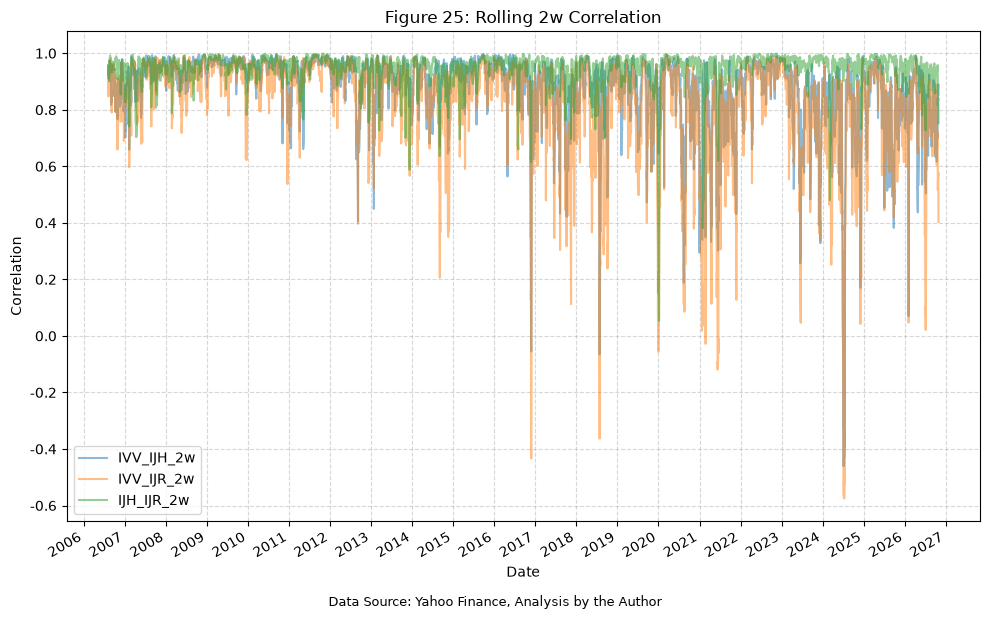

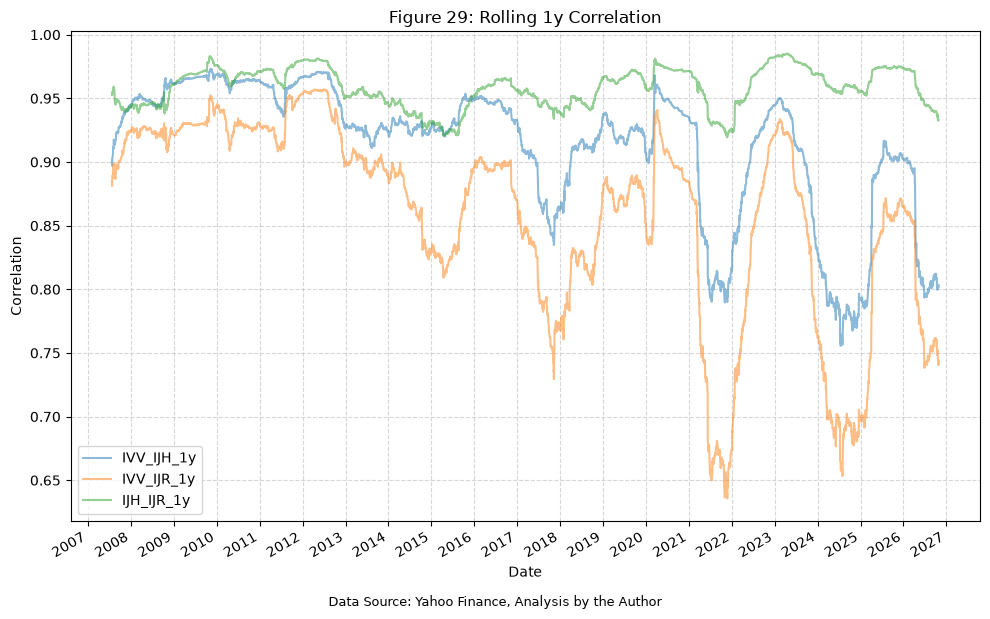

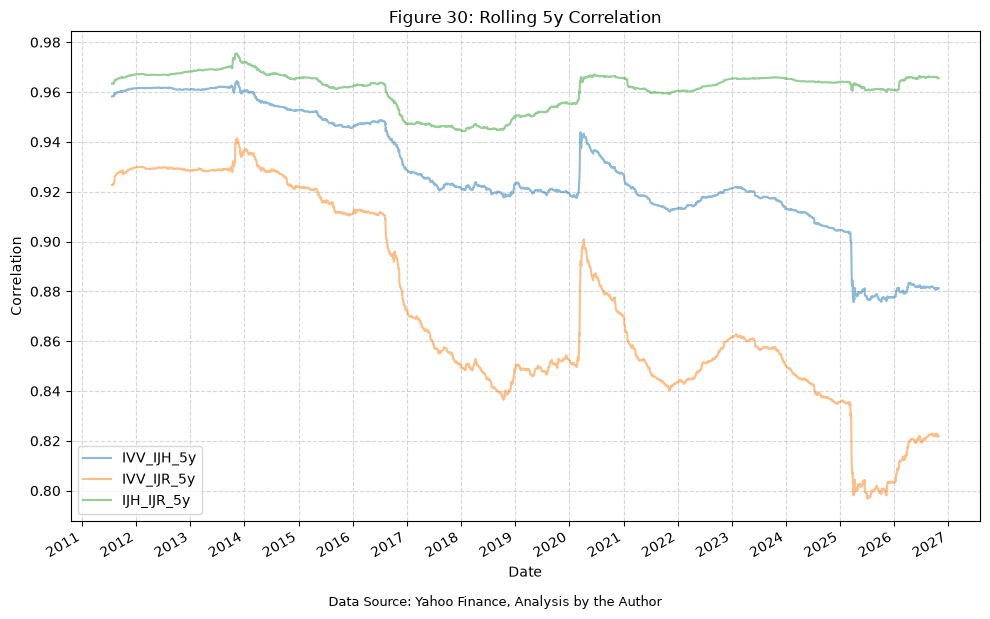

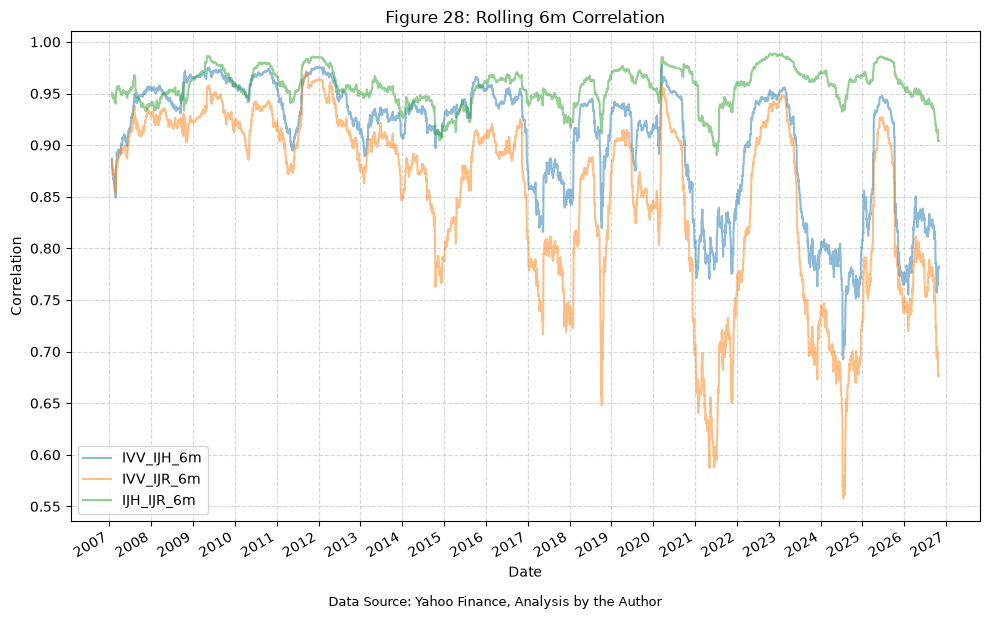

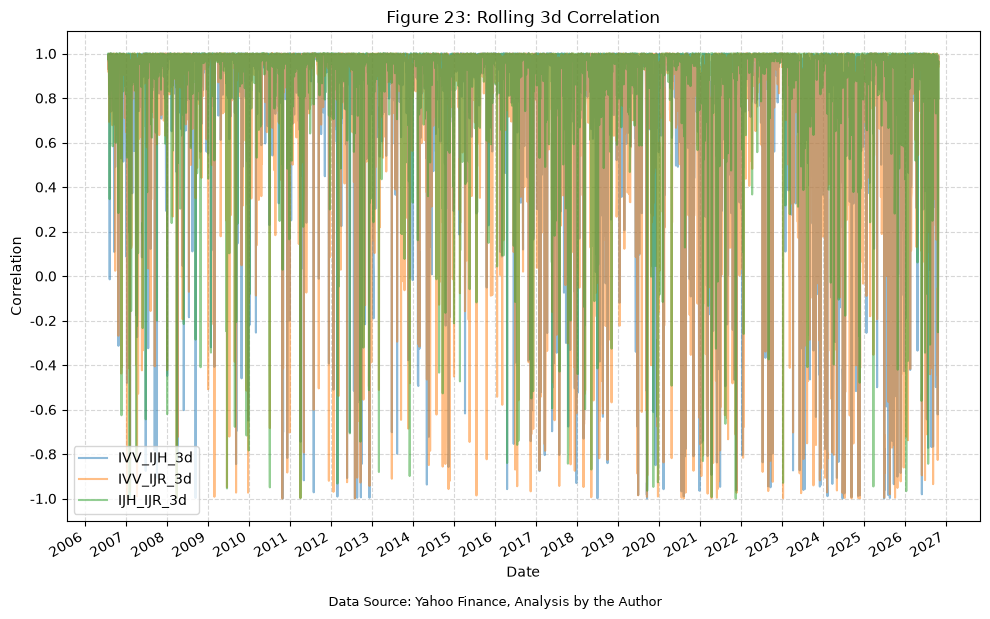

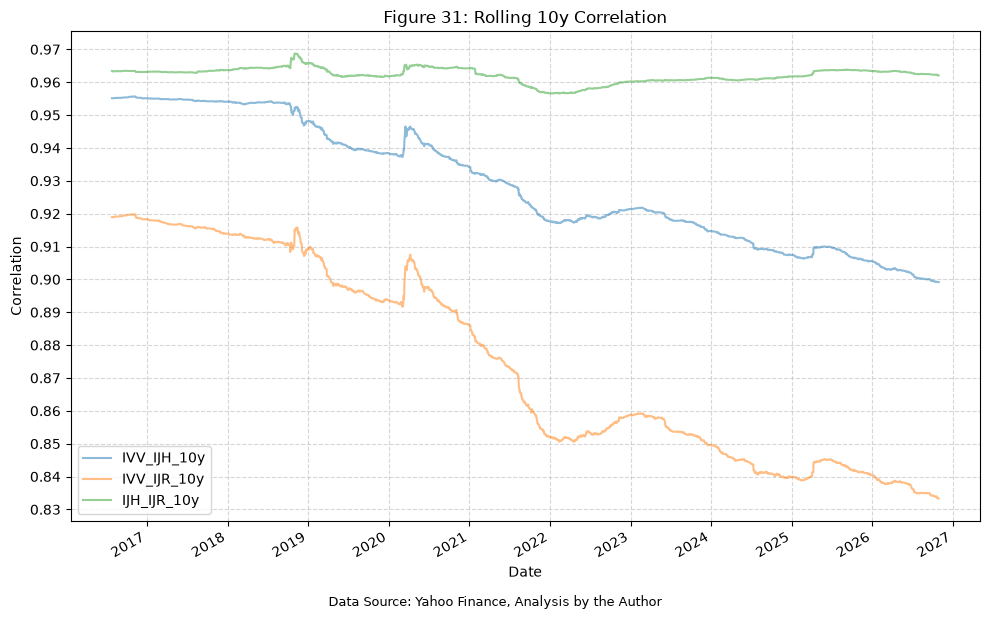

for window in rolling_windows.keys():
    plot_time_series(
        df=rolling_corr_results_df,
        plot_start_date=None,
        plot_end_date=None,
        plot_columns=[col for col in rolling_corr_results_df.columns if f"{window}" in col],
        title=f"Figure {next(figure_number)}: Rolling {window} Correlation",
        x_label="Date",
        x_format="Year",
        x_tick_spacing=1,
        x_tick_start=None,
        x_tick_rotation=30,
        y_label="Correlation",
        y_format="Decimal",
        y_format_decimal_places="Auto",
        y_tick_spacing="Auto",
        y_tick_rotation=0,
        grid=True,
        legend=True,
        export_plot=False,
        plot_file_name=None,
        caption=f"Data Source: Yahoo Finance, Analysis by the Author",
    )

# Calculate total rolling correlation for each window
for window, days in rolling_windows.items():
    rolling_corr_results_df[f"total_rolling_correlation_{window}"] = rolling_corr_results_df[[col for col in rolling_corr_results_df.columns if col.endswith(f"_{window}")]].sum(axis=1) / len([col for col in rolling_corr_results_df.columns if col.endswith(f"_{window}")])

# Reset any 0.00 values to NaN
rolling_corr_results_df.replace(0.00, np.nan, inplace=True)

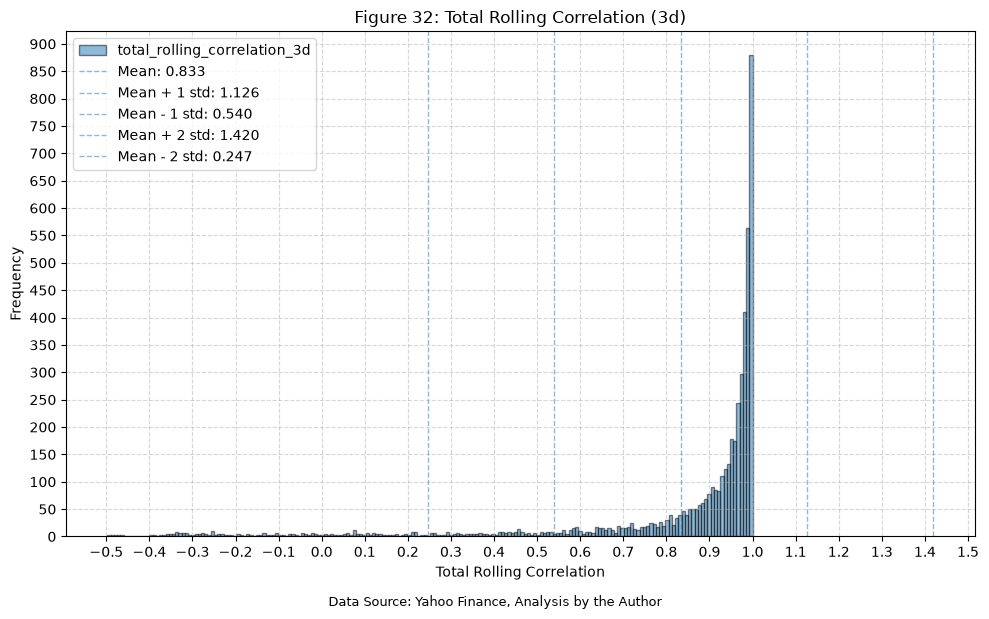

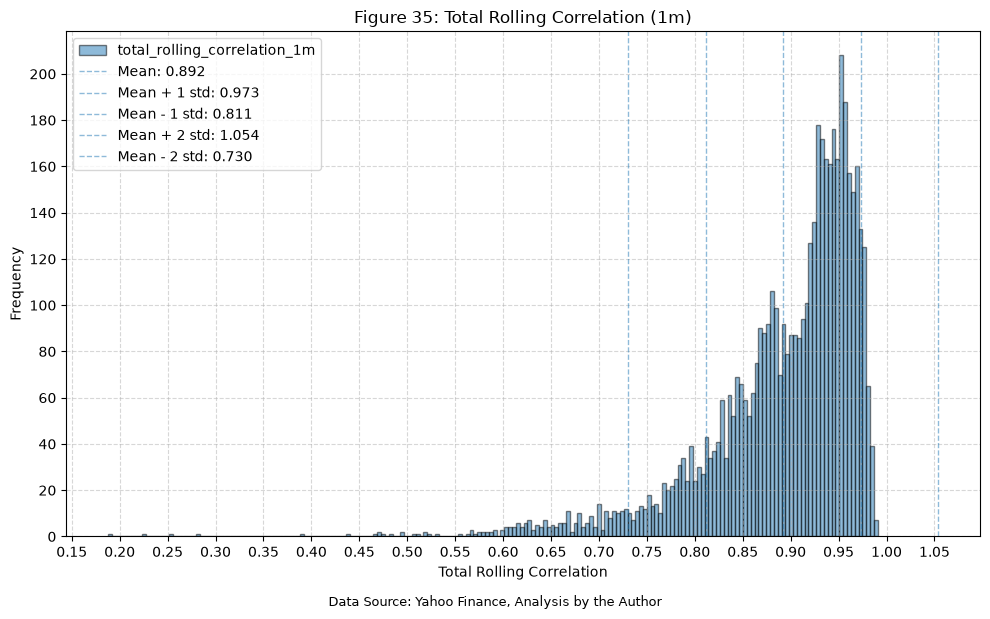

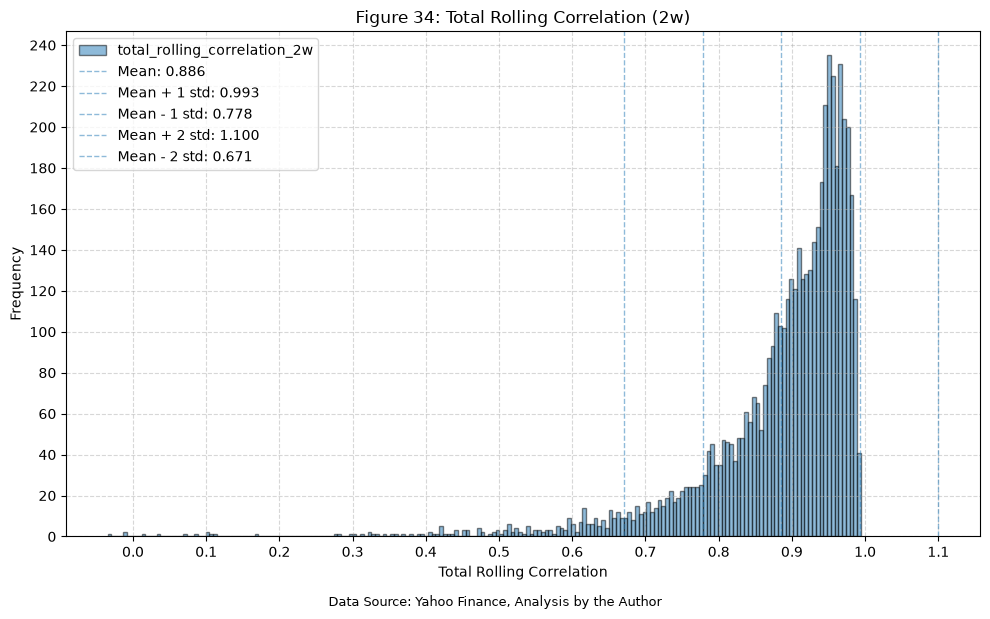

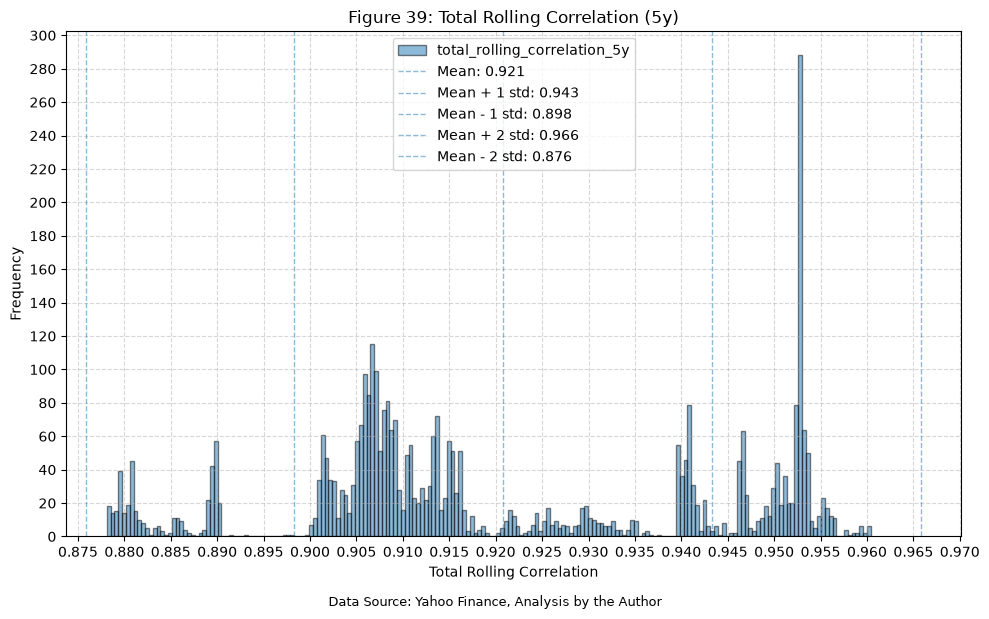

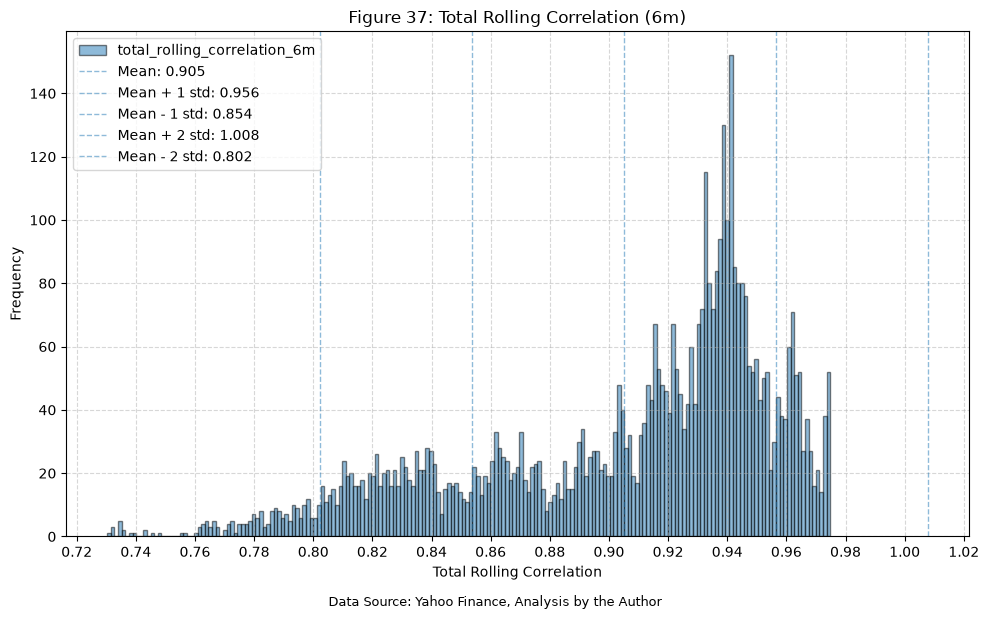

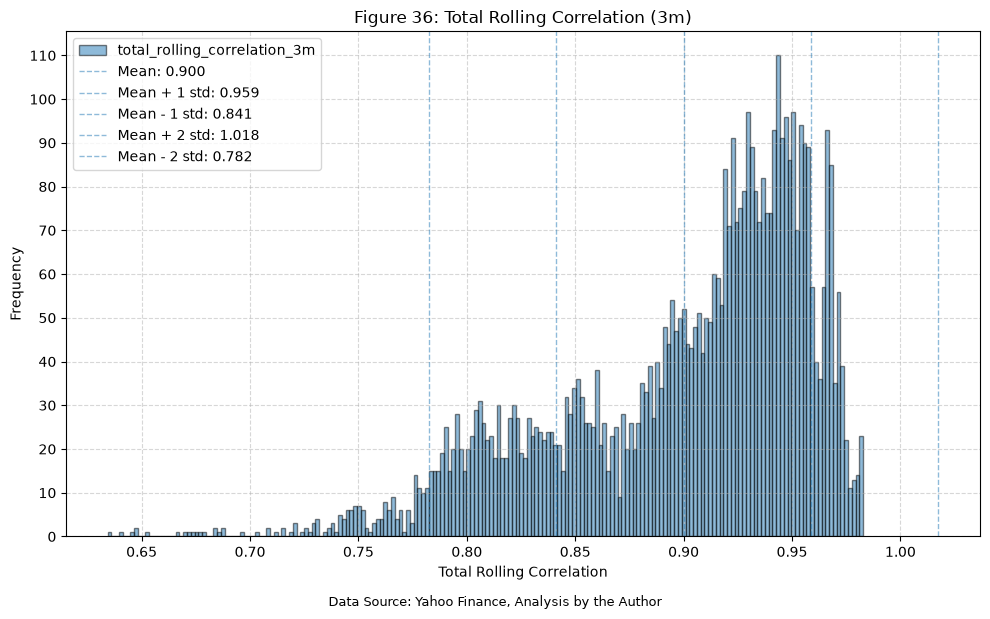

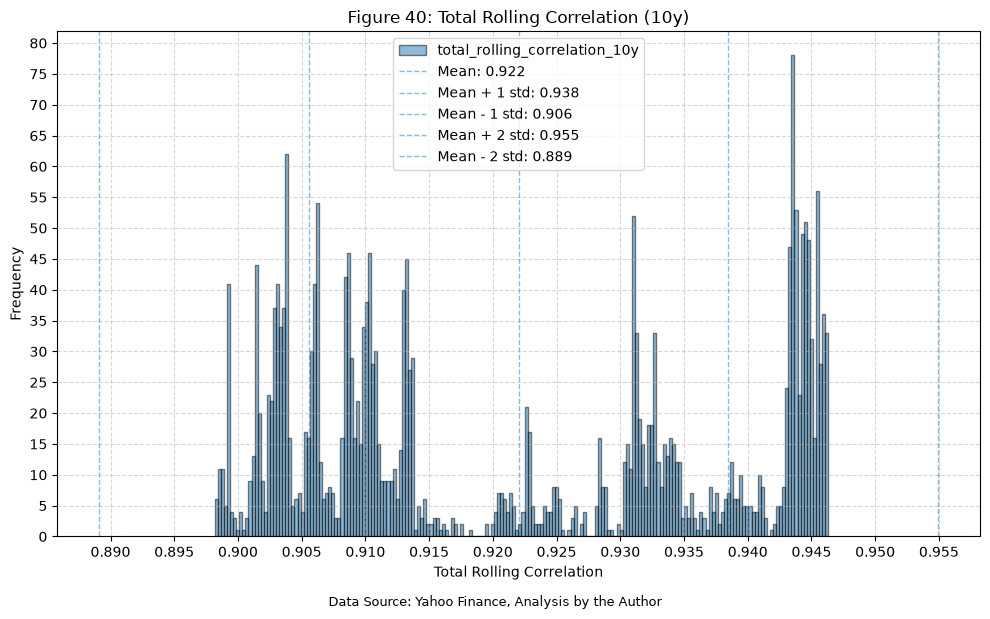

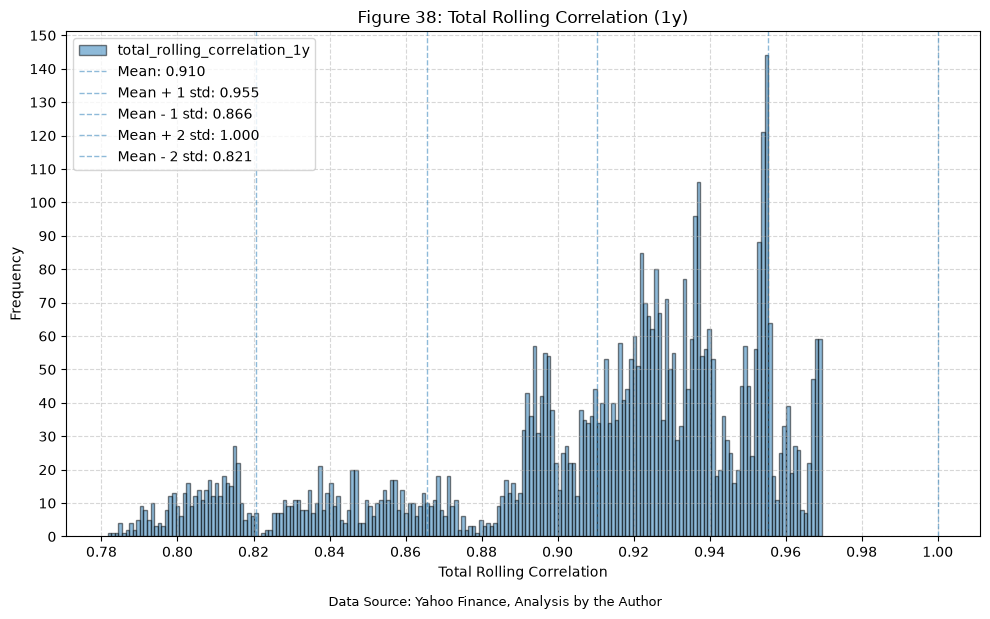

for window in rolling_windows.keys():

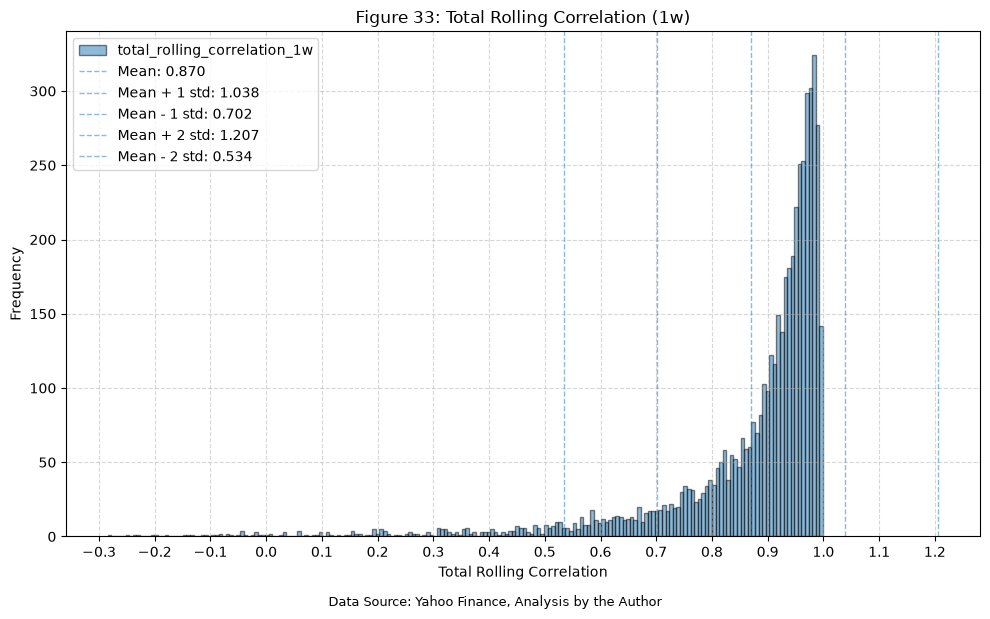

    plot_histogram(
        df=rolling_corr_results_df[[f"total_rolling_correlation_{window}"]].dropna(),
        plot_columns=[f"total_rolling_correlation_{window}"],
        title=f"Figure {next(figure_number)}: Total Rolling Correlation ({window})",
        x_label="Total Rolling Correlation",
        x_tick_spacing="Auto",
        x_tick_rotation=0,
        y_label="Frequency",
        y_tick_spacing="Auto",
        y_tick_rotation=0,
        caption=f"Data Source: Yahoo Finance, Analysis by the Author",
    )

# Define rolling windows in trading days
return_windows = {
    "1d": 1,  # 1 day (~1 trading day)
    "3d": 3,  # 3 days (~3 trading days)
    "1w": 5,  # 1 week (~5 trading days)
    "2w": 10,  # 2 weeks (~10 trading days)
    "1m": 21,  # 1 month (~21 trading days)
    "2m": 42,  # 2 months (~42 trading days)
    "3m": 63,  # 3 months (~63 trading days)
}

# Merge daily returns in for the ETFs
total_rolling_corr_with_returns = rolling_corr_results_df.merge(
    fund_data_daily_returns_all[
        [f"{ft}_Daily_Return" for ft in tickers]
    ].dropna(),
    left_index=True,
    right_index=True,
    how="left",
)

# Calculate compounded rolling returns (CRR), and then shift to create forward returns
for rw in return_windows.keys():
    for ft in tickers:
        total_rolling_corr_with_returns[f"{ft}_Daily_Return_{rw}_CRR"] = (
            total_rolling_corr_with_returns[f"{ft}_Daily_Return"]
            .rolling(window=return_windows[rw])
            .apply(lambda x: (1 + x).prod() - 1, raw=True)
        )
        total_rolling_corr_with_returns[f"{ft}_Daily_Return_fwd_{rw}_CRR"] = total_rolling_corr_with_returns[
            f"{ft}_Daily_Return_{rw}_CRR"
        ].shift(-return_windows[rw])

display(Markdown(f"Table {next(table_number)}: Total Rolling Correlations With Forward Returns"))
display(total_rolling_corr_with_returns)

analysis_windows = ["1w", "2w", "1m"]
decile_labels = [f"D{i}" for i in range(1, 11)]

decile_summary = {}

for window in analysis_windows:
    col = f"total_rolling_correlation_{window}"
    df = total_rolling_corr_with_returns.dropna(subset=[col])

    # Assign each day to a correlation decile and record each decile's range
    bucket = pd.qcut(df[col], 10, labels=decile_labels)
    ranges = df[col].groupby(bucket, observed=True).agg(["min", "max"])
    row_labels = ["Baseline (all days)"] + [
        f"{d} ({ranges.loc[d, 'min']:.2f} to {ranges.loc[d, 'max']:.2f})" for d in decile_labels
    ]

    pct_positive = {}
    mean_return = {}
    for rw in return_windows.keys():
        for ft in tickers:
            fwd = df[f"{ft}_Daily_Return_fwd_{rw}_CRR"]
            valid = fwd.notna()
            fwd, b = fwd[valid], bucket[valid]
            pct_positive[(rw, ft)] = [(fwd > 0).mean() * 100] + list(fwd.gt(0).groupby(b, observed=True).mean() * 100)
            mean_return[(rw, ft)] = [fwd.mean() * 100] + list(fwd.groupby(b, observed=True).mean() * 100)

    decile_summary[window] = {
        "pct_positive": pd.DataFrame(pct_positive, index=row_labels),
        "mean_return": pd.DataFrame(mean_return, index=row_labels),
    }

for window in analysis_windows:
    display(Markdown(f"Table {next(table_number)}: Percentage of Positive Future Returns by {window} Total Rolling Correlation Decile"))
    display(decile_summary[window]["pct_positive"])
    display(Markdown(f"Table {next(table_number)}: Mean Future Return (%) by {window} Total Rolling Correlation Decile"))
    display(decile_summary[window]["mean_return"])

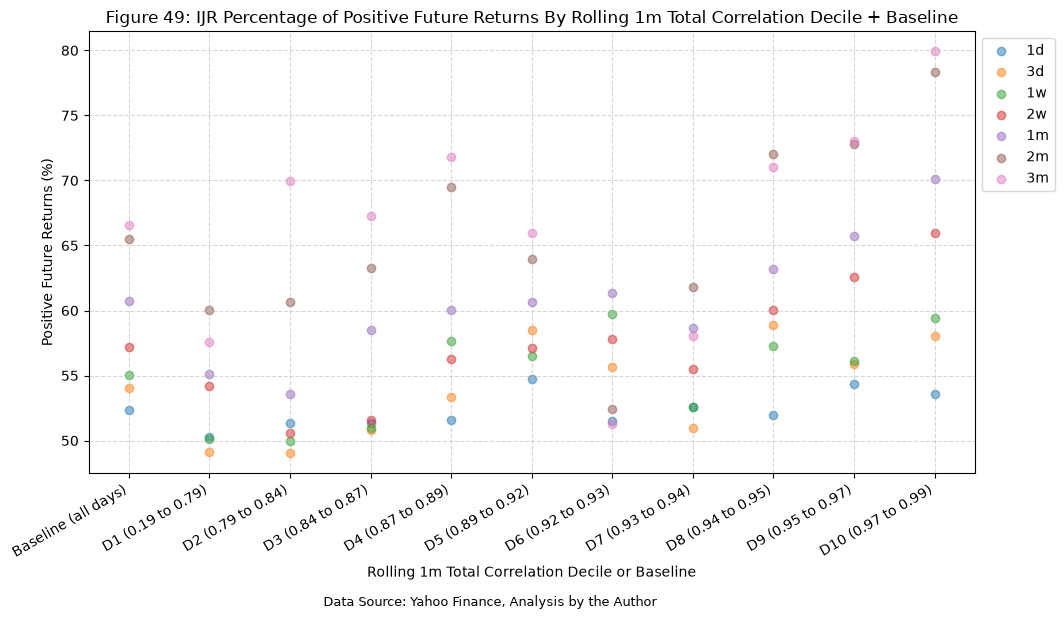

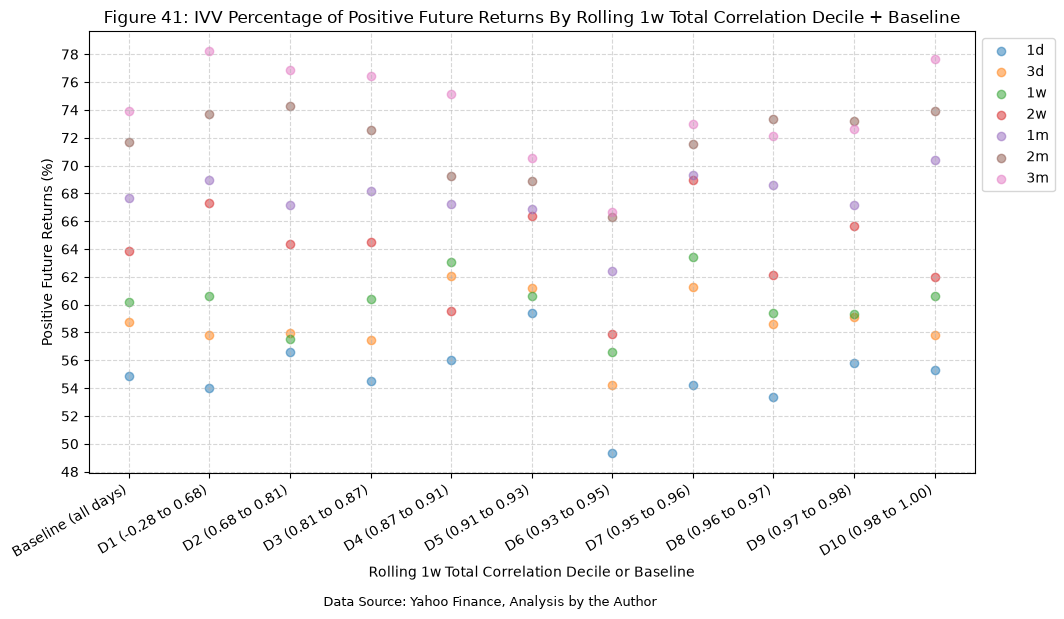

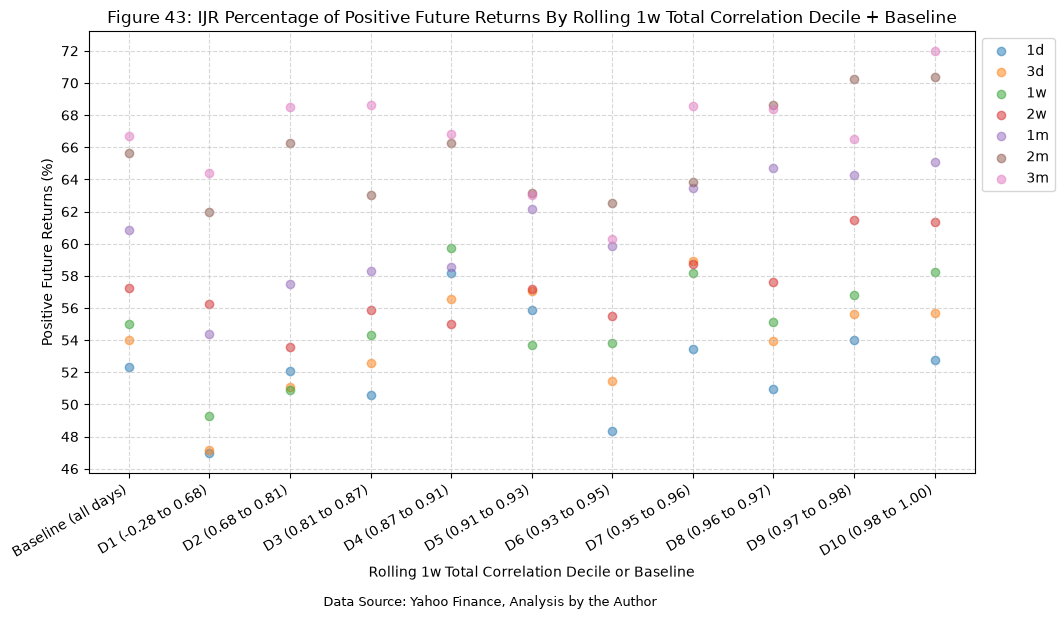

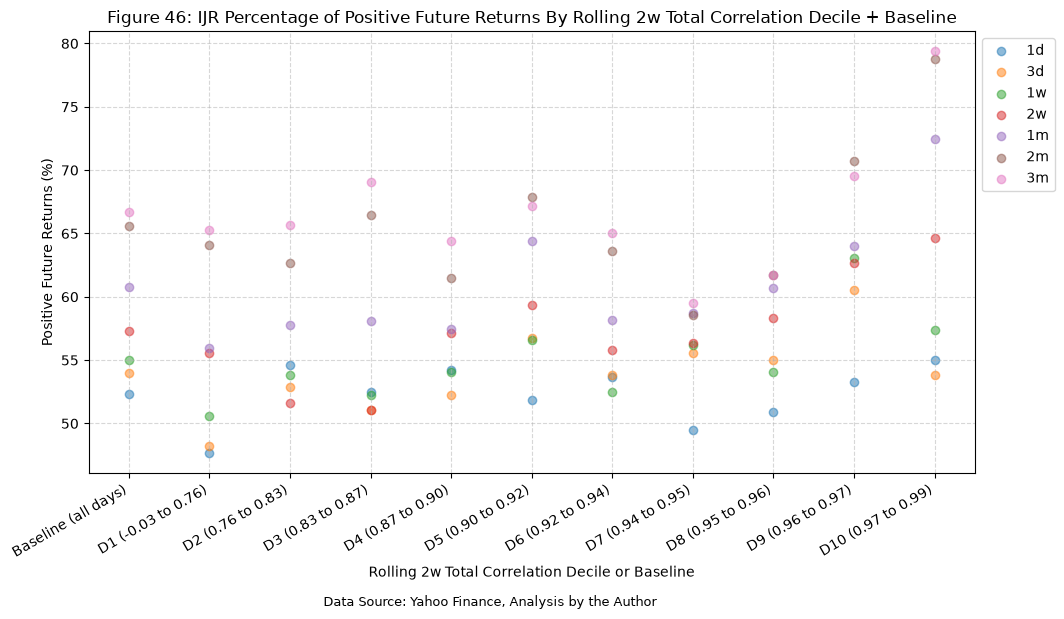

for window in analysis_windows:
    for ticker in tickers:
        # Select this fund's columns (one per return window) and move the decile labels into a column
        ticker_df = (
            decile_summary[window]["pct_positive"]
            .xs(ticker, axis=1, level=1)
            .reset_index(names="Decile")
        )

        plot_scatter(
            df=ticker_df,
            x_plot_column="Decile",
            y_plot_columns=list(return_windows.keys()),
            title=f"Figure {next(figure_number)}: {ticker} Percentage of Positive Future Returns By Rolling {window} Total Correlation Decile + Baseline",
            x_label=f"Rolling {window} Total Correlation Decile or Baseline",
            x_format="String",
            x_format_decimal_places="Auto",
            x_tick_spacing="Auto",
            x_tick_start=None,
            x_tick_rotation=30,
            y_label="Positive Future Returns (%)",
            y_format="Decimal",
            y_format_decimal_places=0,
            y_tick_spacing="Auto",
            y_tick_rotation=0,
            grid=True,
            legend=True,
            legend_location="upper left",
            legend_anchor=(1, 1),
            caption=f"Data Source: Yahoo Finance, Analysis by the Author",
        )

# Assign each day to a correlation decile and record each decile's range
bucket = pd.qcut(total_rolling_corr_with_returns.dropna(subset=["total_rolling_correlation_2w"])["total_rolling_correlation_2w"], 10, labels=decile_labels)

# Merge the decile bucket back into the original DataFrame
total_rolling_corr_with_returns = total_rolling_corr_with_returns.dropna(subset=["total_rolling_correlation_2w"])
total_rolling_corr_with_returns["total_rolling_correlation_2w_decile"] = bucket

display(Markdown(f"Table {next(table_number)}: Total Rolling Correlations With 2w Decile Assignments"))
display(total_rolling_corr_with_returns)

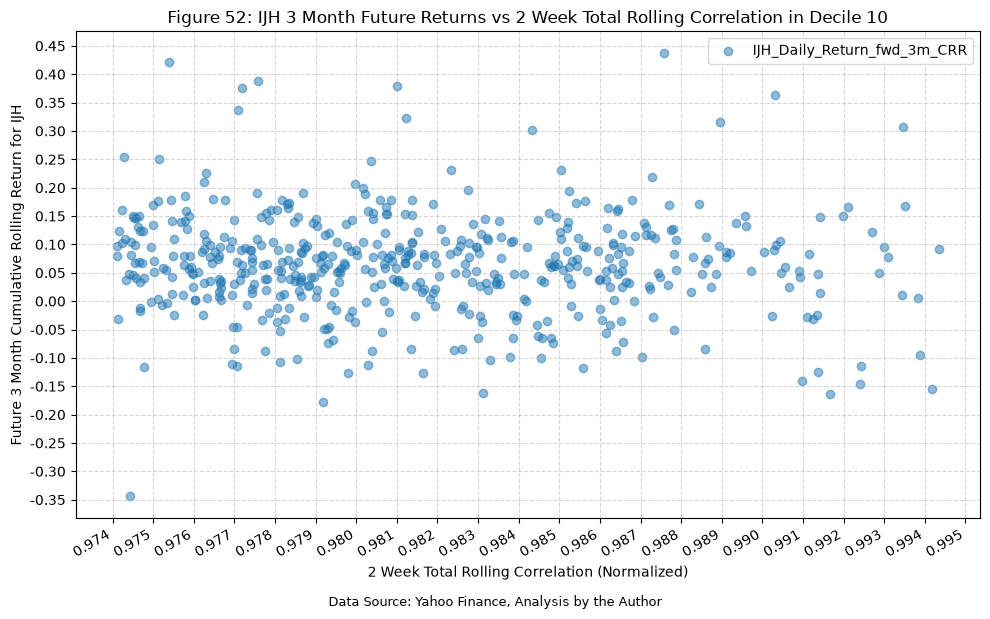

for ticker in tickers:

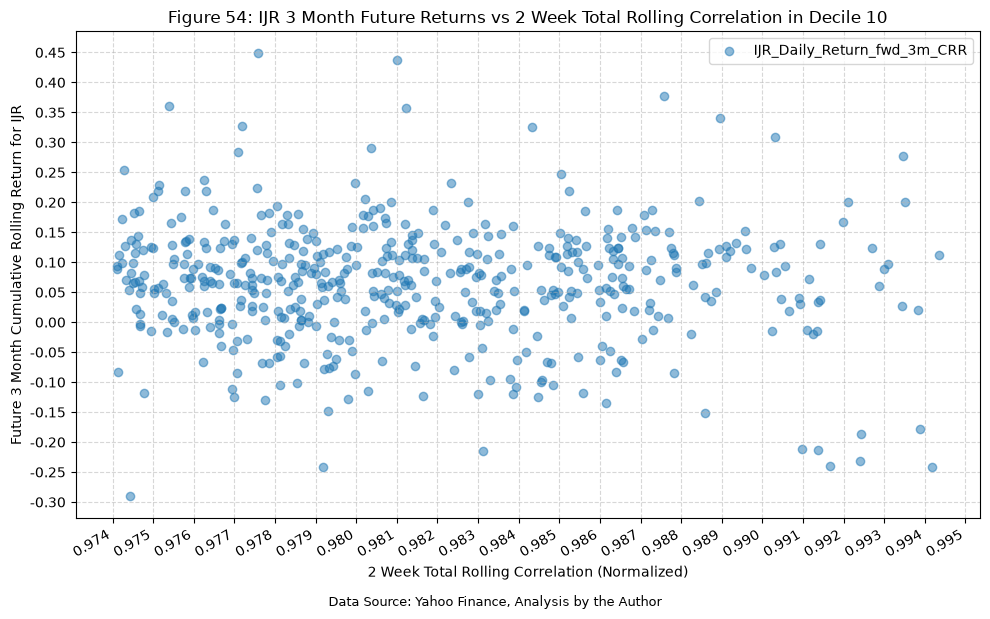

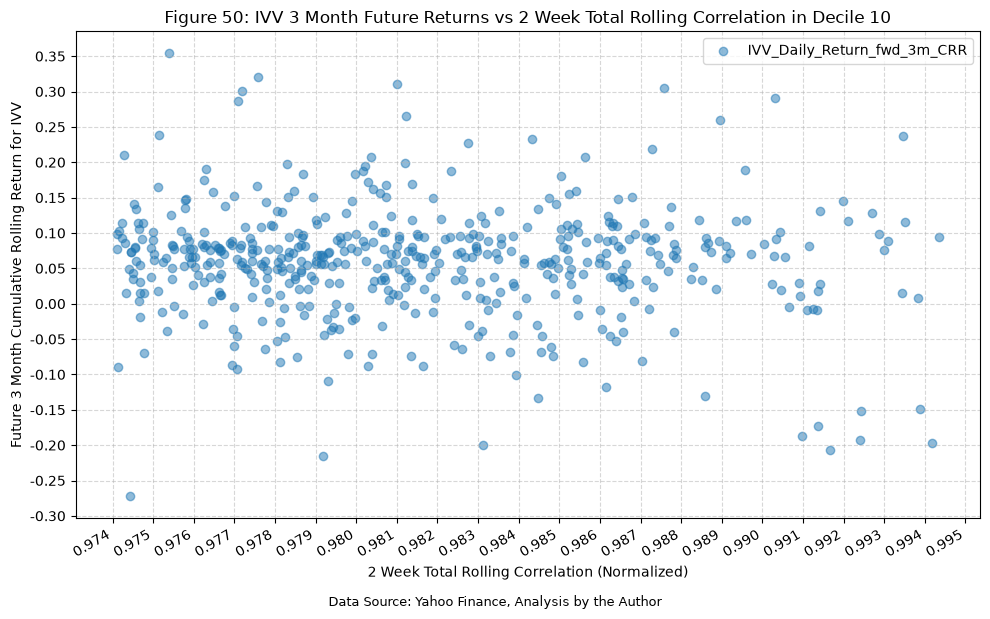

    plot_scatter(
        df=total_rolling_corr_with_returns[total_rolling_corr_with_returns["total_rolling_correlation_2w_decile"] == "D10"],
        x_plot_column="total_rolling_correlation_2w",
        y_plot_columns=[f"{ticker}_Daily_Return_fwd_3m_CRR"],
        title=f"Figure {next(figure_number)}: {ticker} 3 Month Future Returns vs 2 Week Total Rolling Correlation in Decile 10",
        x_label="2 Week Total Rolling Correlation (Normalized)",
        x_format="Decimal",
        x_format_decimal_places="Auto",
        x_tick_spacing="Auto",
        x_tick_start=None,
        x_tick_rotation=30,
        y_label=f"Future 3 Month Cumulative Rolling Return for {ticker}",
        y_format="Decimal",
        y_format_decimal_places=2,
        y_tick_spacing="Auto",
        y_tick_rotation=0,
        grid=True,
        legend=True,
        export_plot=False,
        plot_file_name=None,
        caption=f"Data Source: Yahoo Finance, Analysis by the Author",
    )

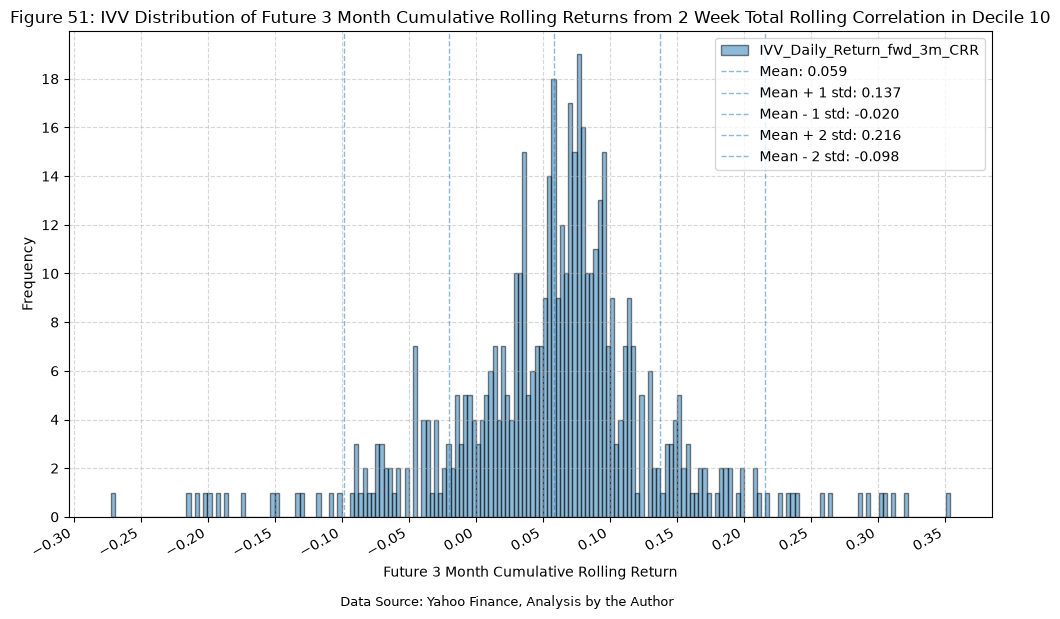

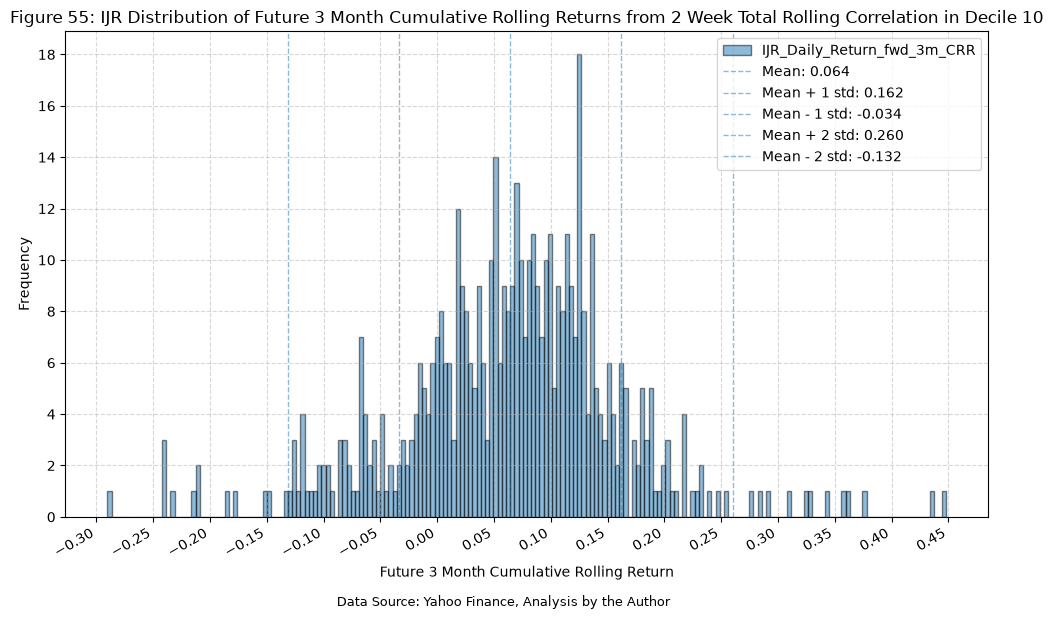

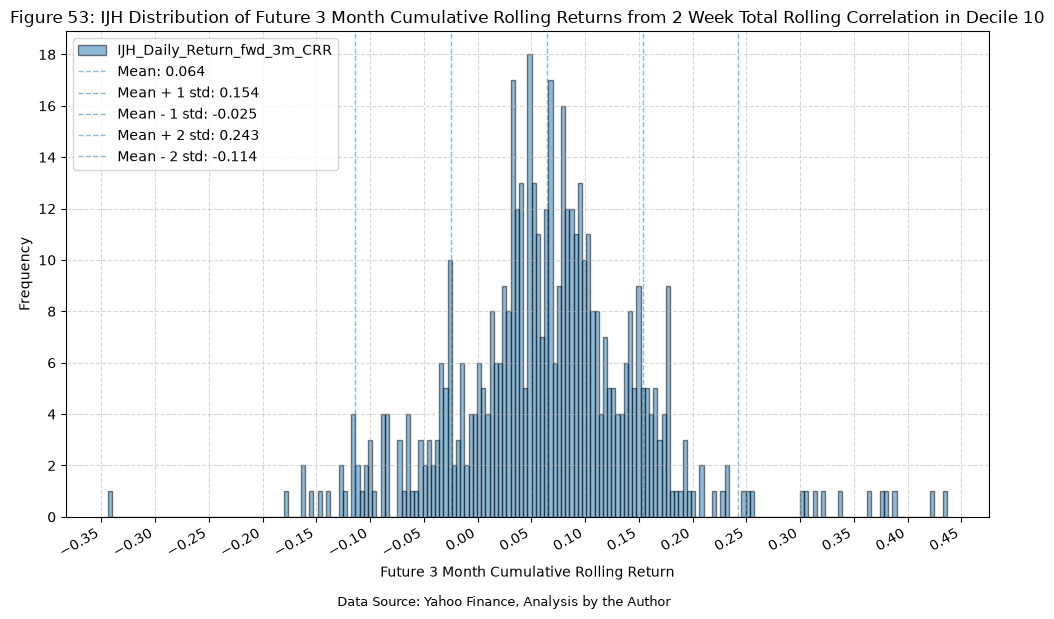

    plot_histogram(
        df=total_rolling_corr_with_returns[total_rolling_corr_with_returns["total_rolling_correlation_2w_decile"] == "D10"],
        plot_columns=[f"{ticker}_Daily_Return_fwd_3m_CRR"],
        title=f"Figure {next(figure_number)}: {ticker} Distribution of Future 3 Month Cumulative Rolling Returns from 2 Week Total Rolling Correlation in Decile 10",
        x_label="Future 3 Month Cumulative Rolling Return",
        x_tick_spacing="Auto",
        x_tick_rotation=30,
        y_label="Frequency",
        y_tick_spacing="Auto",
        y_tick_rotation=0,
        grid=True,
        legend=True,
        export_plot=False,
        plot_file_name=None,
        caption=f"Data Source: Yahoo Finance, Analysis by the Author",
    )
